Monitor KDS/GDS Data

Ignition "OFF", connect KDS/GDS.
Ignition "ON" & Engine "OFF", select "Current Data" mode.
Monitor the "Battery Voltage" parameter on the KDS/GDS.
Specification: Approx. 11.5 to 12.5V

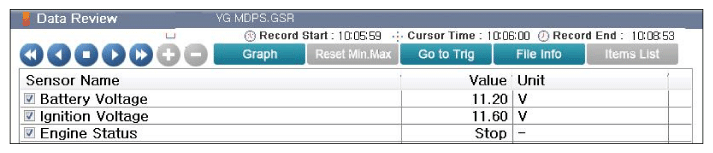

Fig 1: Screen Display - Ignition ON & Engine OFF
Courtesy of KIA MOTORS AMERICA, INC.
Ignition "ON" & Engine "ON", select "Current Data" mode.
Monitor the "Battery Voltage" parameter on the KDS/GDS.
Specification: Approx. 12.5 to 14.5V

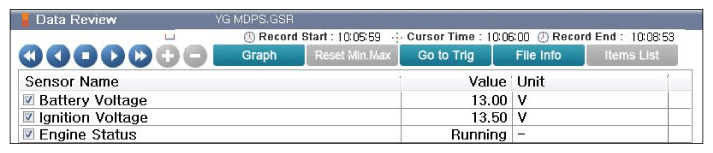

Fig 2: Screen Display - Ignition ON & Engine ON
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter within specifications?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- This may be a intermittent problem caused by poor contact of component or the MDPS ECU.
- Thoroughly check for looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
- Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
