Engine Control System Diagnosis (1 Of 6)
>>
DTC P0090-00: Fuel Pressure Regulator 1 Control Circuit/Open
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

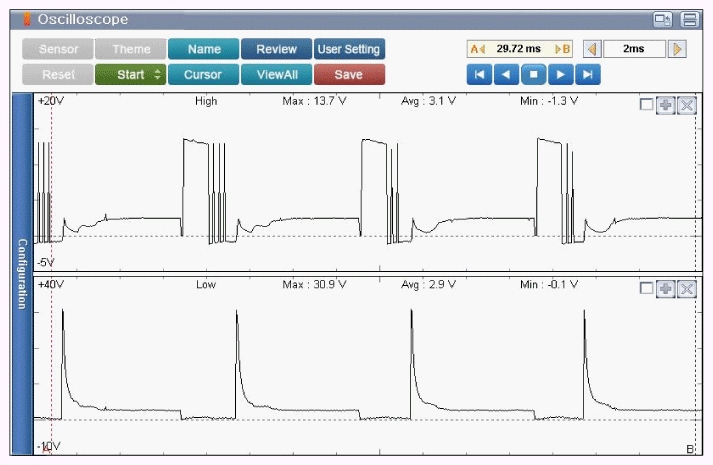

Fig 1: Screen Display - Normal Waveforms Of FPCV At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.

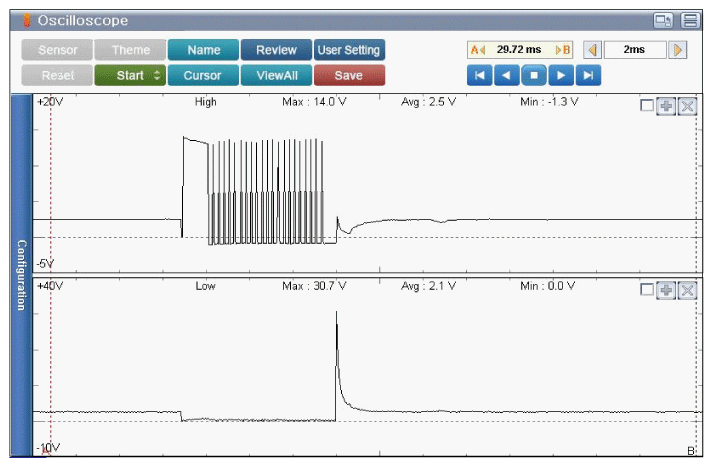

Fig 2: Screen Display - Normal Waveforms Of FPCV At Approx. 2000 RPM
Courtesy of KIA MOTORS AMERICA, INC.
