TPMS Sensor Position (PS474)

Publication date: 2017-06-01
Reference number: PS474

TPMS SENSOR POSITION

TECHNICAL SERVICE BULLETIN

Reference Number(s): PS474, Date of Issue: June, 2017

KIA:	All Models w/TPMS
GROUP:	Chassis

SERVICE INFORMATION

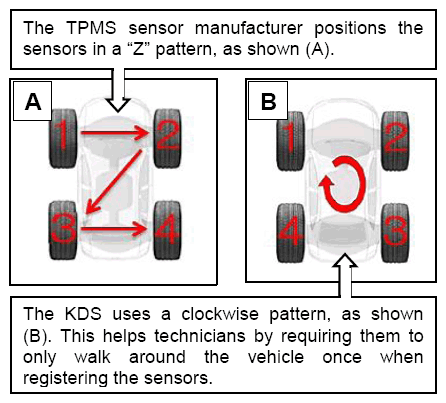

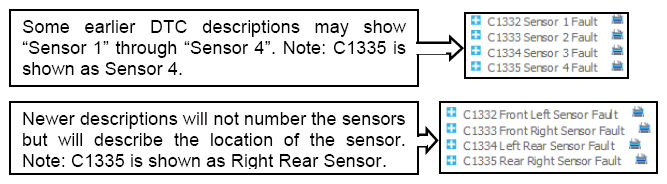

When diagnosing TPMS-related DTCs, make sure you are investigating the correct sensor. The TPMS positioning from the manufacturer may be different from the positioning shown on a KDS. See the diagram below.

PATTERN

DESCRIPTION
