Components And Components Location: Components
[LH]

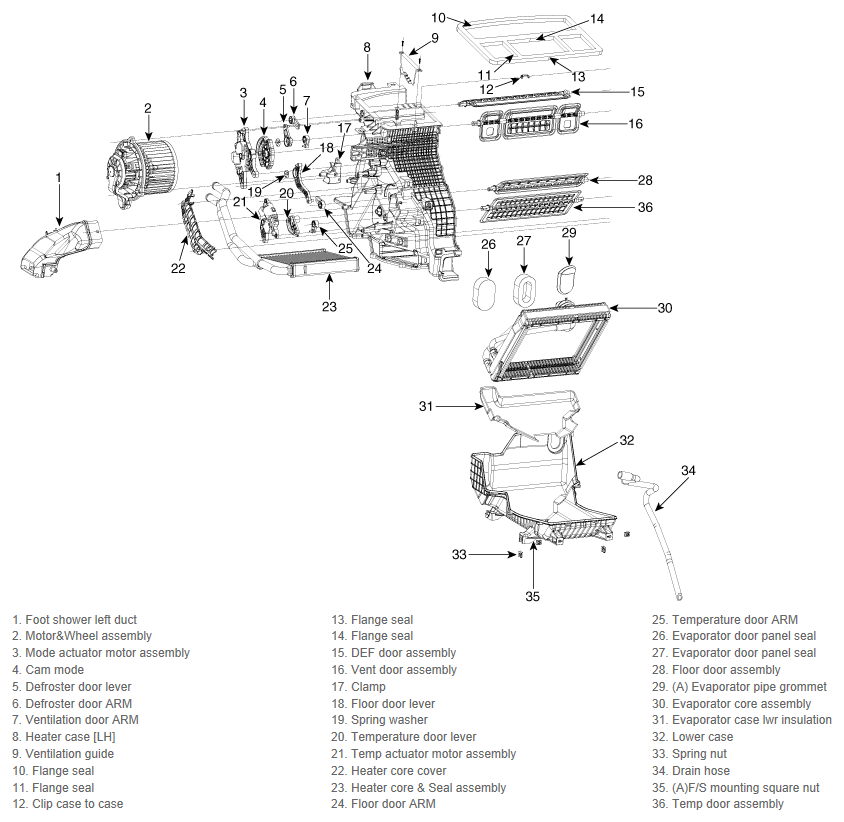

Fig 1: Heater Unit Components Location (LH)
Courtesy of KIA MOTORS AMERICA, INC.
[RH]

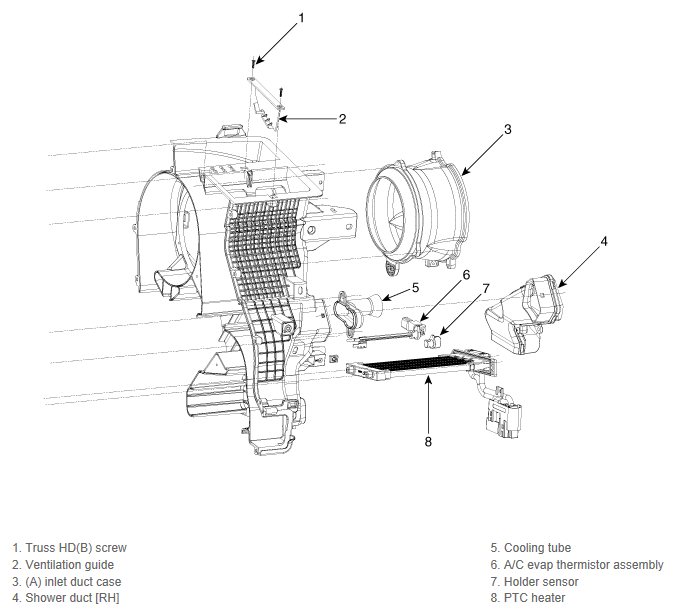

Fig 2: Heater Unit Components Location (RH)
Courtesy of KIA MOTORS AMERICA, INC.
