Driver Power Window Switch

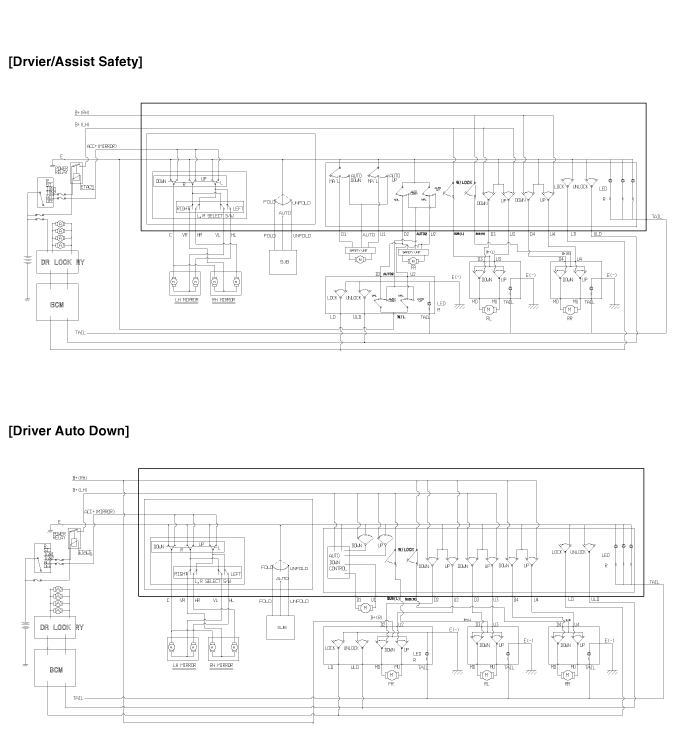

Fig 1: Driver Power Window Switch Circuit Diagram
G12235816Courtesy of KIA MOTORS AMERICA, INC.
