Circuit Diagram

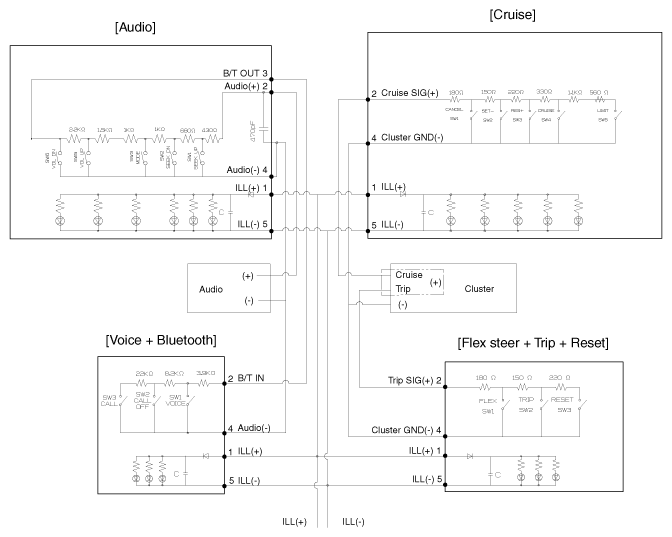

Fig 1: Audio Remote Control Circuit Diagram
G12235214Courtesy of KIA MOTORS AMERICA, INC.

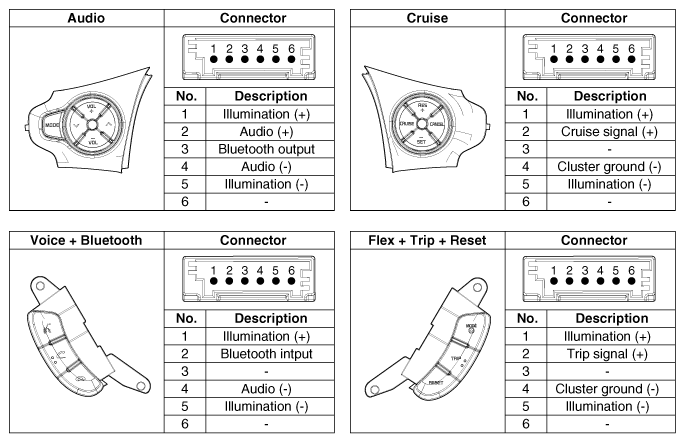

Fig 2: Audio Remote Control Connector End View Description Chart
G12235215Courtesy of KIA MOTORS AMERICA, INC.
