Repair Procedures: Installation

Install in the reverse order of removal.
Verticle angle : -1 ± 0.4°

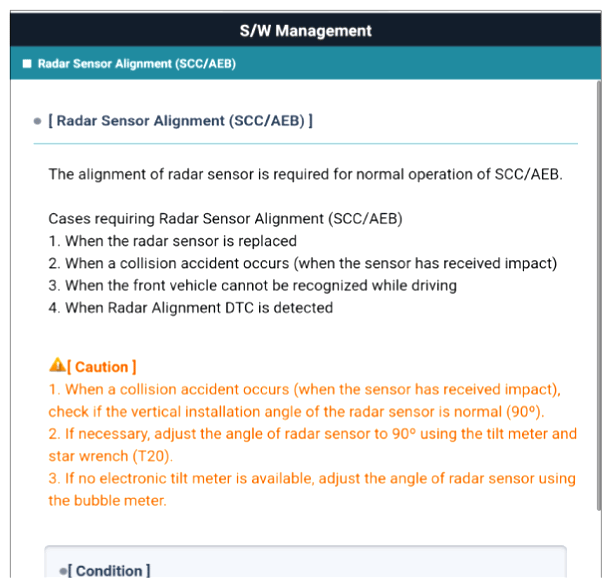

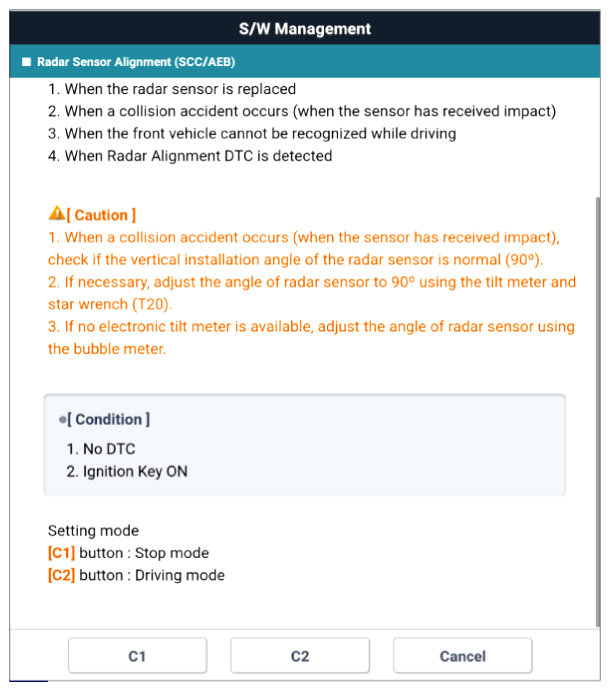

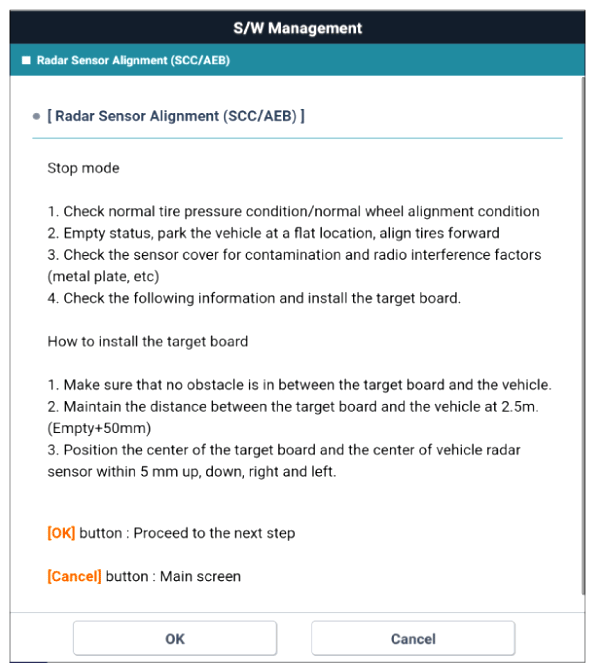

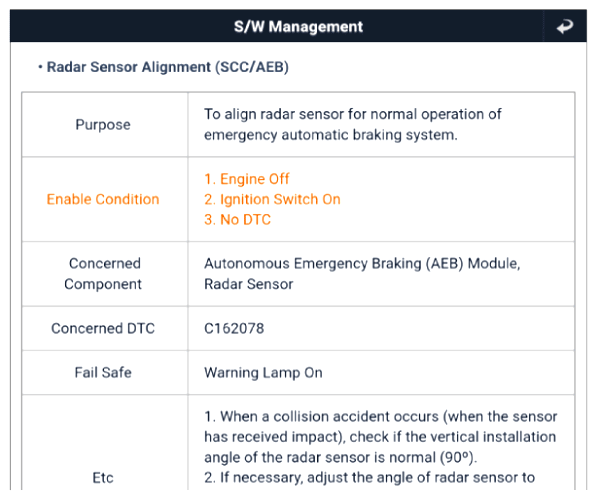

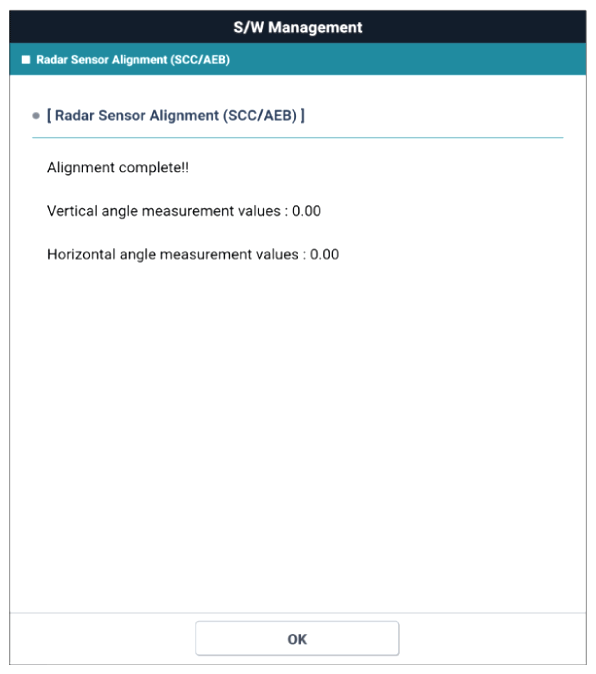

Perform SCC variant coding.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the SCC radar alignment.
(Refer to Engine Electrical System - "SMART CRUISE CONTROL (SCC) ALIGNMENT ")
