Terminal and Connector Inspection

  1. Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Has a problem been found?
    Fig 1: Cluster Module And TPMS ECU Circuit Diagram
    G12209629Courtesy of KIA MOTORS AMERICA, INC.

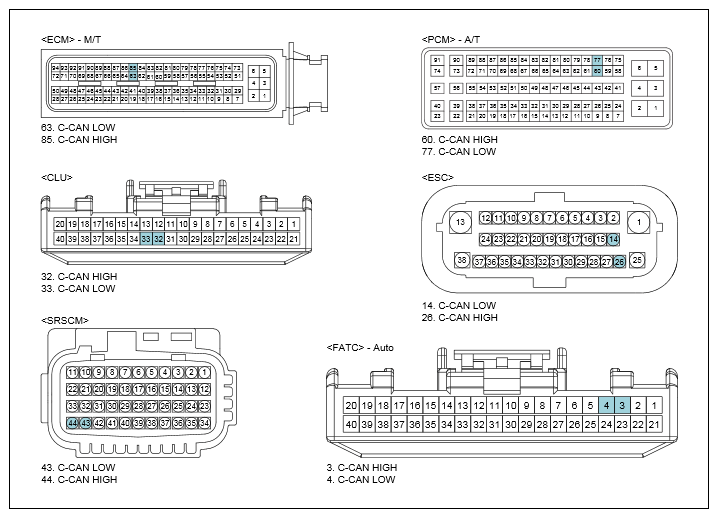

    Fig 2: Cluster Module And TPMS ECU Connector Terminals (1 Of 2)
    G12209630Courtesy of KIA MOTORS AMERICA, INC.

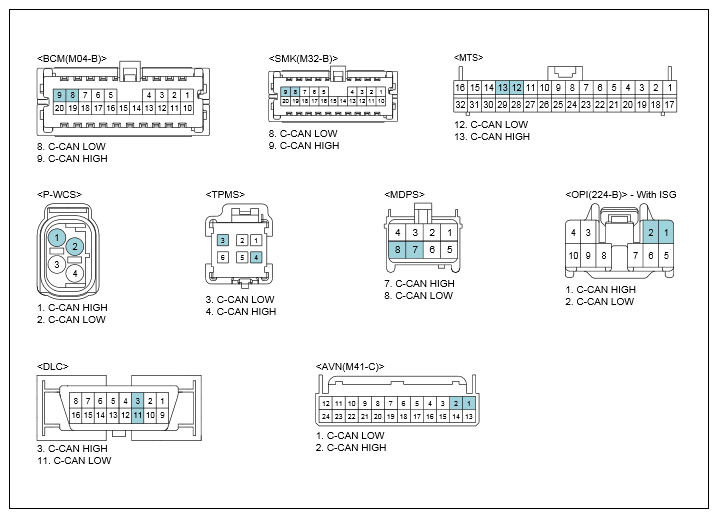

    Fig 3: Cluster Module And TPMS ECU Connector Terminals (2 Of 2)
    G12209631Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
