Circuit Diagram: (M/T)

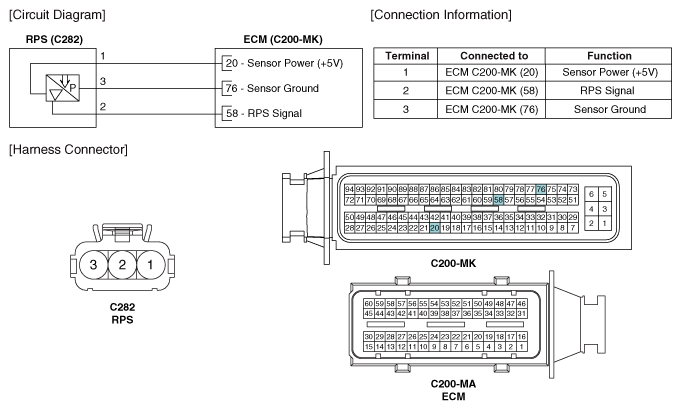

Fig 1: Rail Pressure Sensor Circuit Diagram (M/T) And Connector End View
G12239142Courtesy of KIA MOTORS AMERICA, INC.
