IMS (Integrated Memory System) Module
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

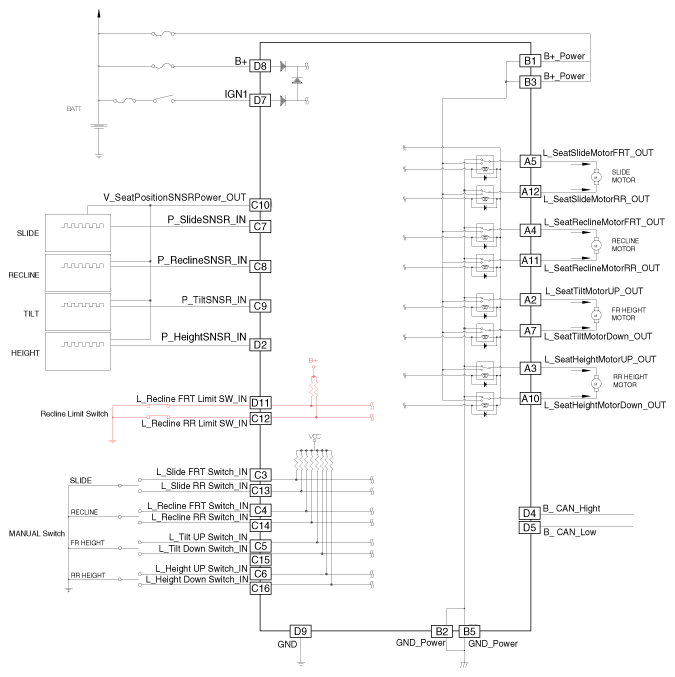

Fig 1: Integrated Memory System Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
