Components And Components Location: Components

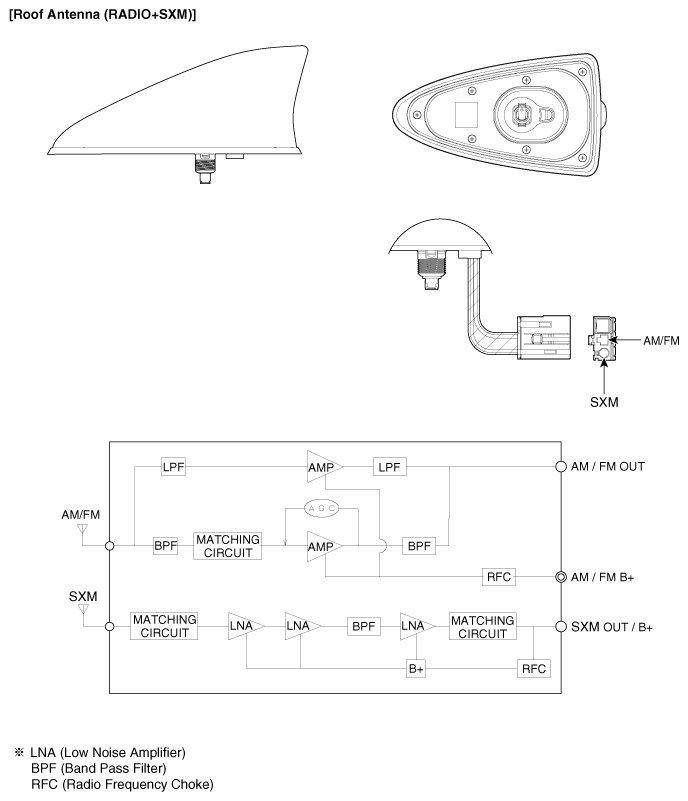

Fig 1: Antenna Components Location With Circuit Diagram (RADIO + SXM)
Courtesy of KIA MOTORS AMERICA, INC.

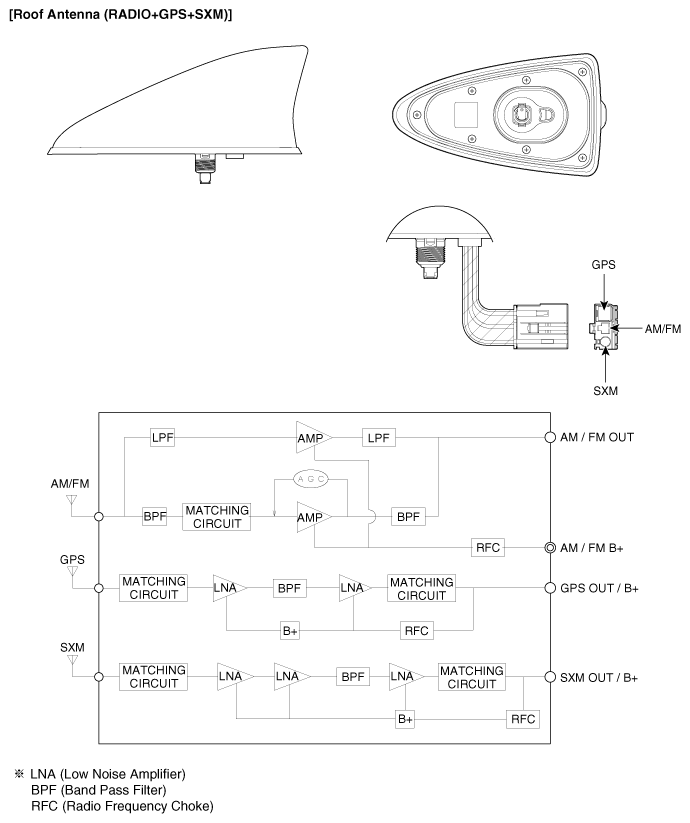

Fig 2: Antenna Components Location With Circuit Diagram (RADIO + GPS + SXM)
Courtesy of KIA MOTORS AMERICA, INC.
