Monitor DTC Status

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

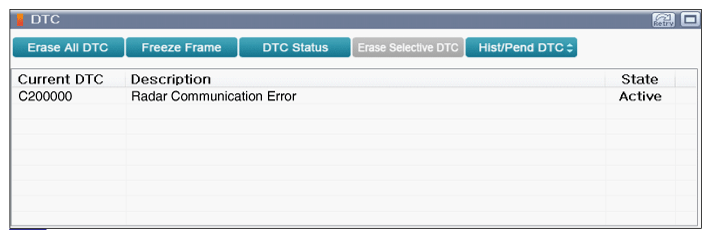

Fig 1: Scantool Display - Diagnostic Trouble Code
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or Control module's connector or was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "Verification Of REPAIR " procedure.
