Monitor DTC Status

Connect GDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
Is DTC status displayed as Present?

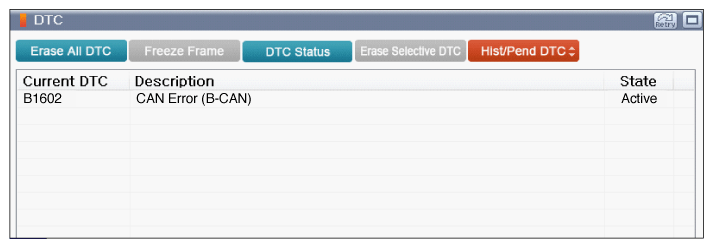

Fig 1: Screen Display - DTC Description
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Go to "WIRING INSPECTION " procedure.
NO
- Go to "Verification Of VEHICLE REPAIR " procedure.
