Circuit Diagram

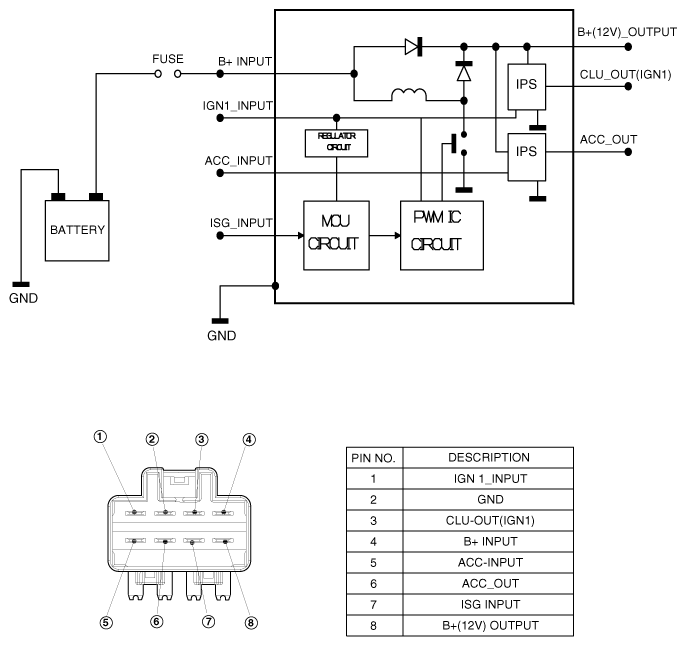

Fig 1: DC/DC Converter Circuit
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
In the ISG mode, if the power of an audio system turns OFF by draw down while "Auto Starting" or "Idle Starting" function operates, replace the DC/DC converter.
