Transmitter Code Registration (Using GDS)

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    Fig 1: Locating Data Link Connector
    G11849519Courtesy of KIA MOTORS AMERICA, INC.
  2. Select the vehicle model and then do "CODE SAVING"

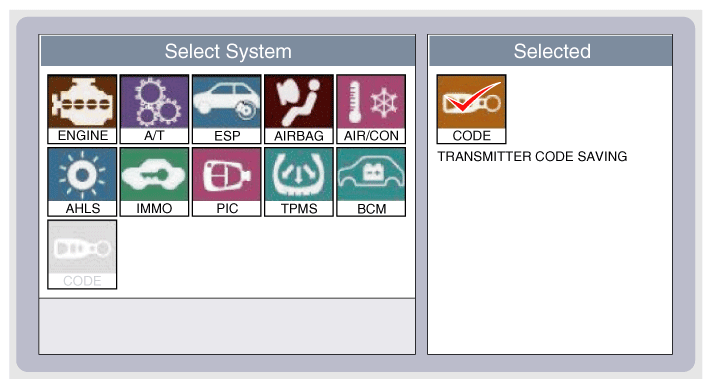

    Fig 2: Scantool Display - Transmitter Code Saving
    G11849520Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown in illustration below.

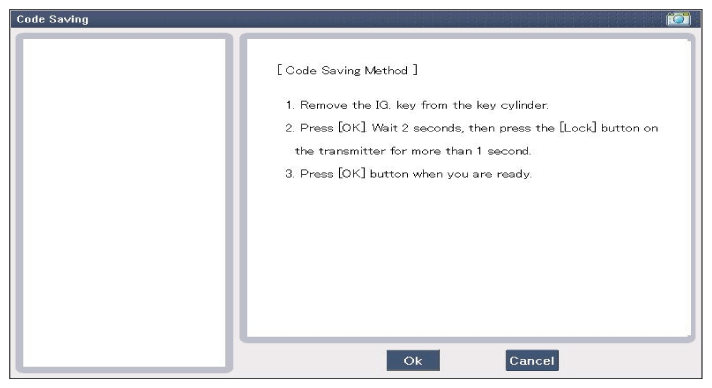

    Fig 3: Scantool Display - Code Saving Method
    G11849521Courtesy of KIA MOTORS AMERICA, INC.
  4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps  1 to 4 and then code saving is completed.

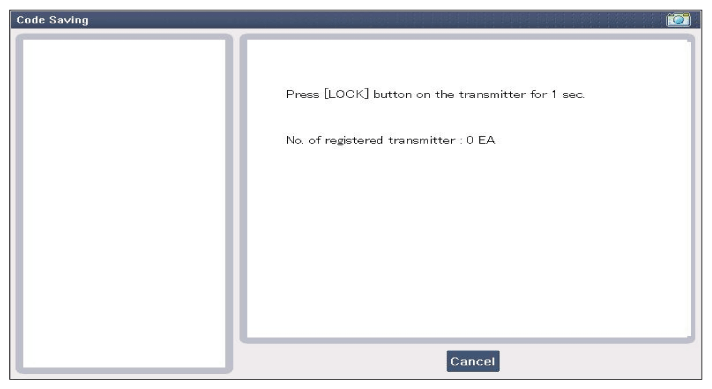

Fig 4: Scantool Display - Code Saving
G11849522Courtesy of KIA MOTORS AMERICA, INC.

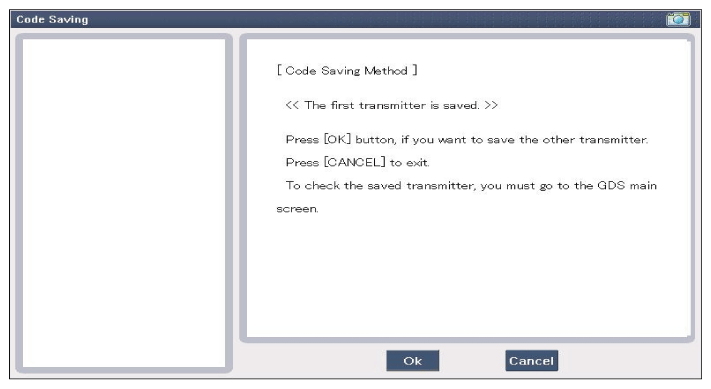

Fig 5: Scantool Display - Code Saving Method (First Transmitter Saved)
G11849523Courtesy of KIA MOTORS AMERICA, INC.
Fig 6: Scantool Display - Code Saving
G11849524Courtesy of KIA MOTORS AMERICA, INC.

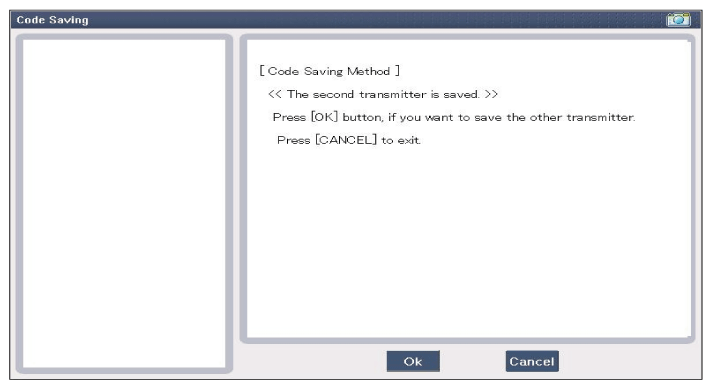

Fig 7: Scantool Display - Code Saving Method (Second Transmitter Saved)
G11849525Courtesy of KIA MOTORS AMERICA, INC.
Fig 8: Scantool Display - Code Saving
G11849526Courtesy of KIA MOTORS AMERICA, INC.

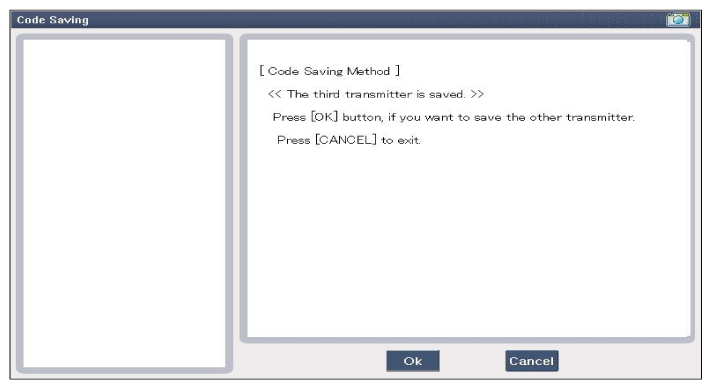

Fig 9: Scantool Display - Code Saving Method (Third Transmitter Saved)
G11849527Courtesy of KIA MOTORS AMERICA, INC.
Fig 10: Scantool Display - Code Saving
G11849528Courtesy of KIA MOTORS AMERICA, INC.

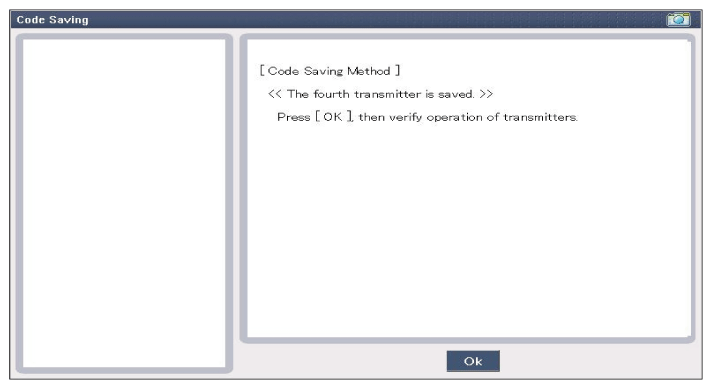

Fig 11: Scantool Display - Code Saving Method (Fourth Transmitter Saved)
G11849529Courtesy of KIA MOTORS AMERICA, INC.

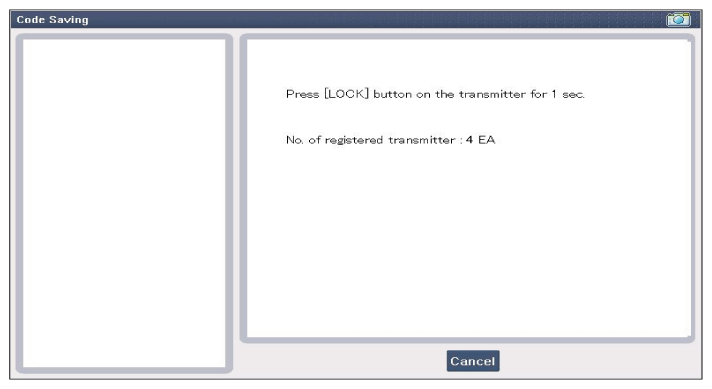

Fig 12: Scantool Display - Code Saving
G11849530Courtesy of KIA MOTORS AMERICA, INC.
