Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

  3. Disconnect the connector (A) and then remove the intake actuator (B) after loosening the mounting screw.

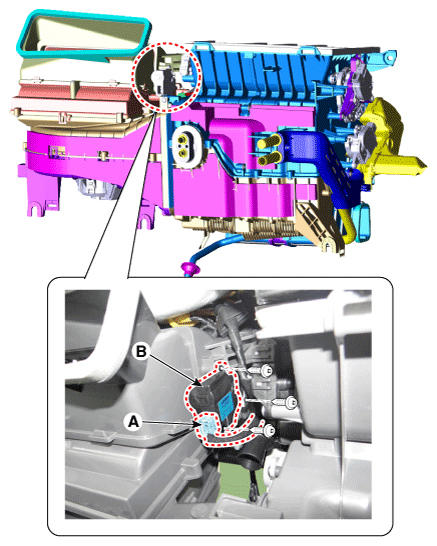

    Fig 1: Removing Intake Actuator Mounting Screw
    G12145039Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
