Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.NOTE:
- When reuse the rain sensor, check the coupling medium for damages, soiling and air bubbles.

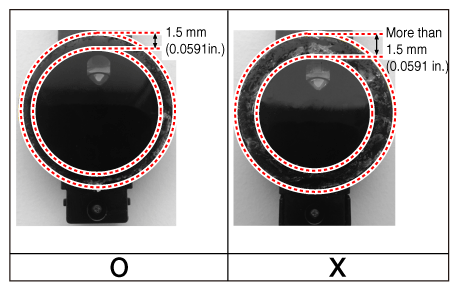

- If the damaged coupling medium area is more than 1.5 mm (0.0591 in.), then the perfect appearance and the function are not guaranteed anymore.
The sensor may not be reused.
- The coupling medium has to be free of dirt. In case that coupling medium of rain sensor is polluted by foreign substances, rain sensor can be reusable after they are removed by sticker roller.
- If the damaged coupling medium area is more than 1.5 mm (0.0591 in.), then the perfect appearance and the function are not guaranteed anymore.
- Matters that require attention when installing the rain sensor.
- Do not touch the coupling medium.
- Do not damage the coupling medium during assembly.
- Do not snap both spring arms at the same time. (Important: two times click sound)
- Check the snap fit condition between spring and bracket after installing.
- When reuse the rain sensor, check the coupling medium for damages, soiling and air bubbles.
