Repair Procedures: Inspection

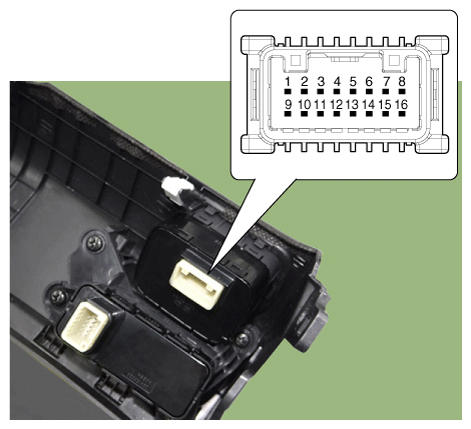

  1. Disconnect the BSD switch connector from the crash pad lower switch assembly.
    G12351288Courtesy of KIA MOTORS AMERICA, INC.

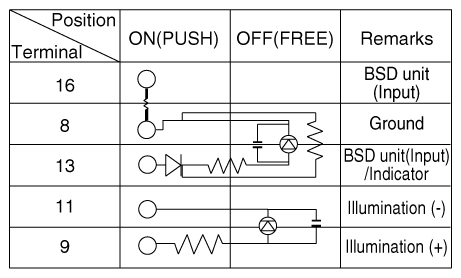

  2. Operate the BSD switch, then check for continuity between terminals and BSD switch connector.
G12351289Courtesy of KIA MOTORS AMERICA, INC.
