Home >> Kia >> 2017 >> Optima LX >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) (Except HEV) >> Memory Power Seat Switch >> Components and Components Location >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Components and Components Location: Components

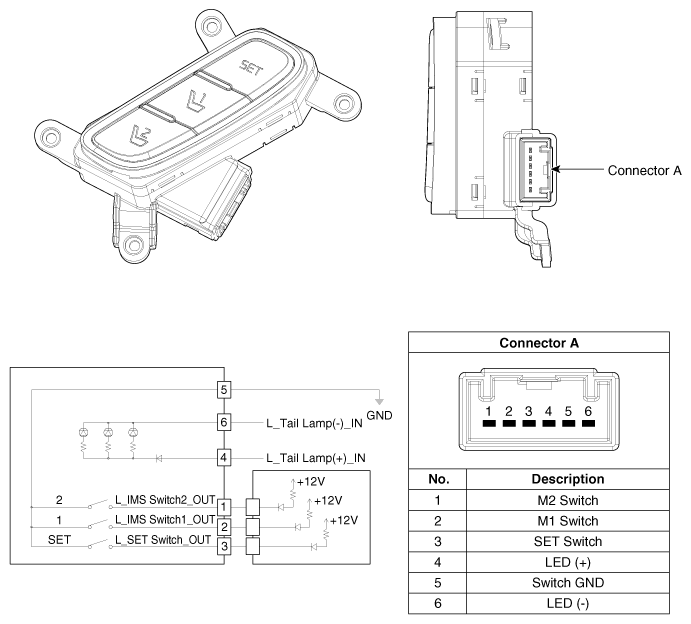

Fig 1: Memory Power Seat Switch Circuit
G12143230Courtesy of KIA MOTORS AMERICA, INC.
