Repair Procedures: Removal
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the manifold absolute pressure sensor connector (A).
Remove the sensor (B) from the Intake manifold by loosening the mounting bolts.

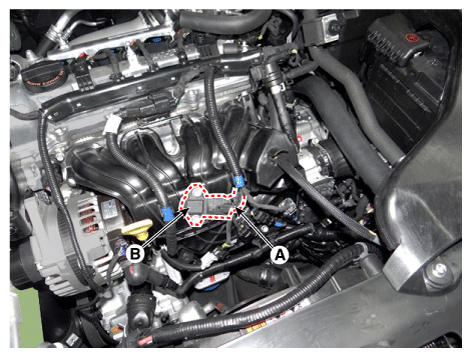

Fig 1: Locating Manifold Absolute Pressure Sensor And Sensor Connector
