Repair Procedures: Replacement

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Seperate the buckle wiring mounting clip.

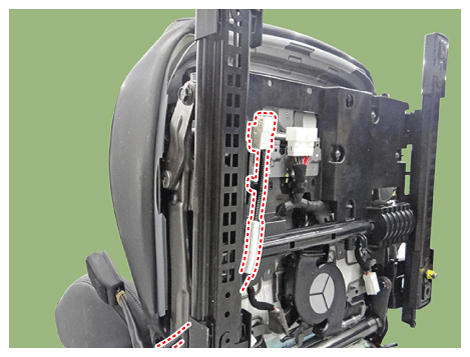

Fig 1: Buckle Wiring Mounting Clip
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

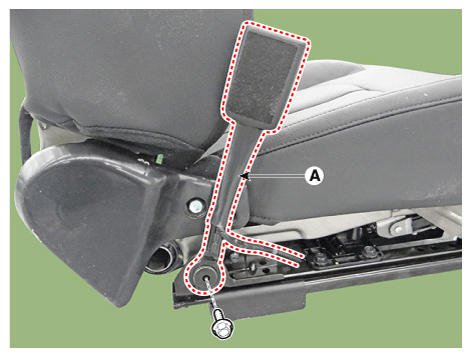

Fig 2: Locating Front Seat Belt Buckle With Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
