Heated Oxygen Sensor (HO2S)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

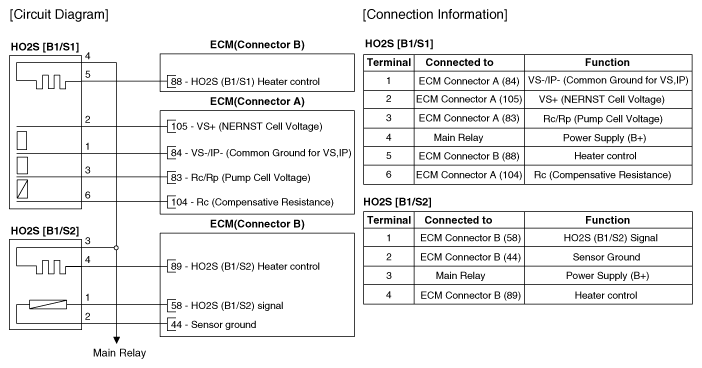

Fig 1: Heated Oxygen Sensor (HO2S) Circuit
Courtesy of KIA MOTORS AMERICA, INC.
Harness Connector
[Bank 1/Sensor 1]
Fig 2: Heated Oxygen Sensor (HO2S) Connector Terminals (Bank 1/Sensor 1)
Courtesy of KIA MOTORS AMERICA, INC.
[Bank 1/Sensor 2]
Fig 3: Heated Oxygen Sensor (HO2S) Connector Terminals (Bank 1/Sensor 2)
Courtesy of KIA MOTORS AMERICA, INC.
