Components Location

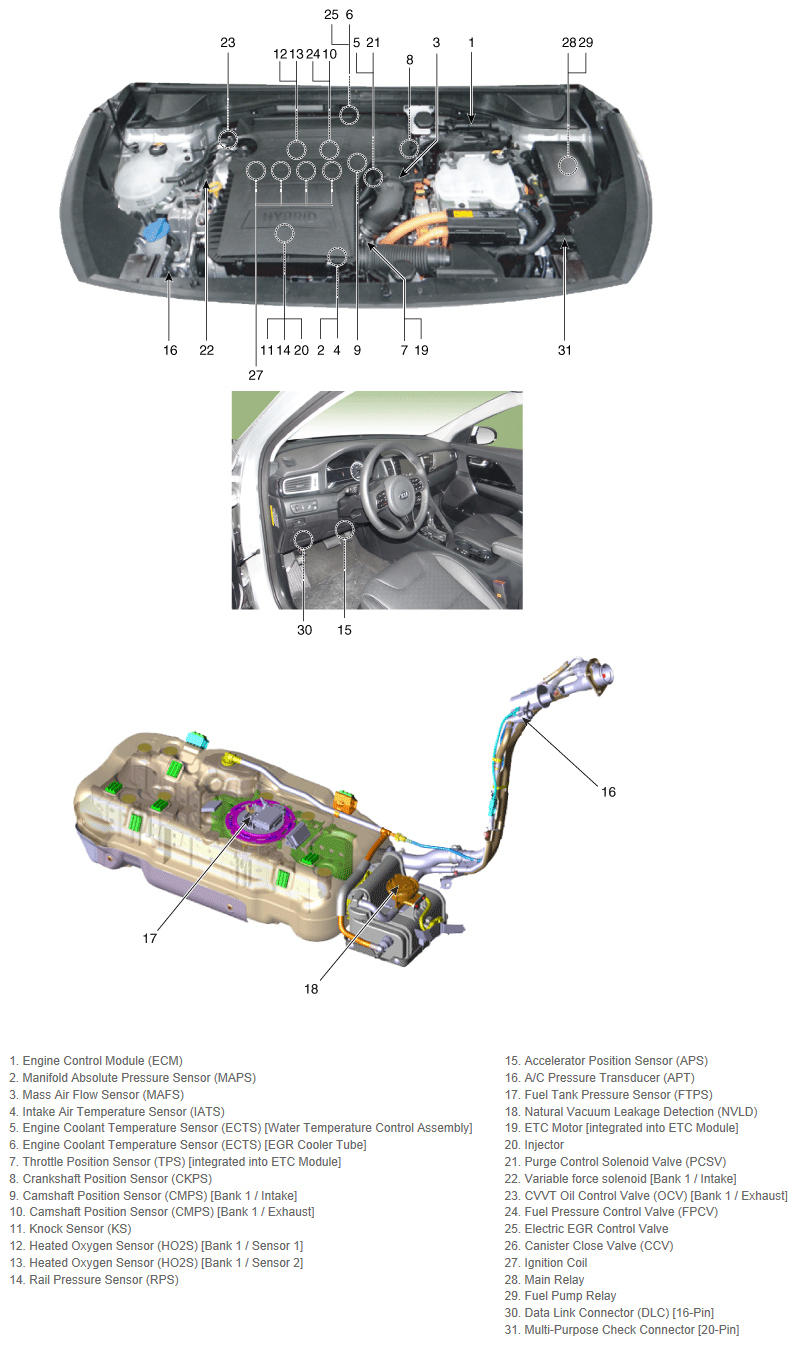

Fig 1: Locating Engine Control System Components (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

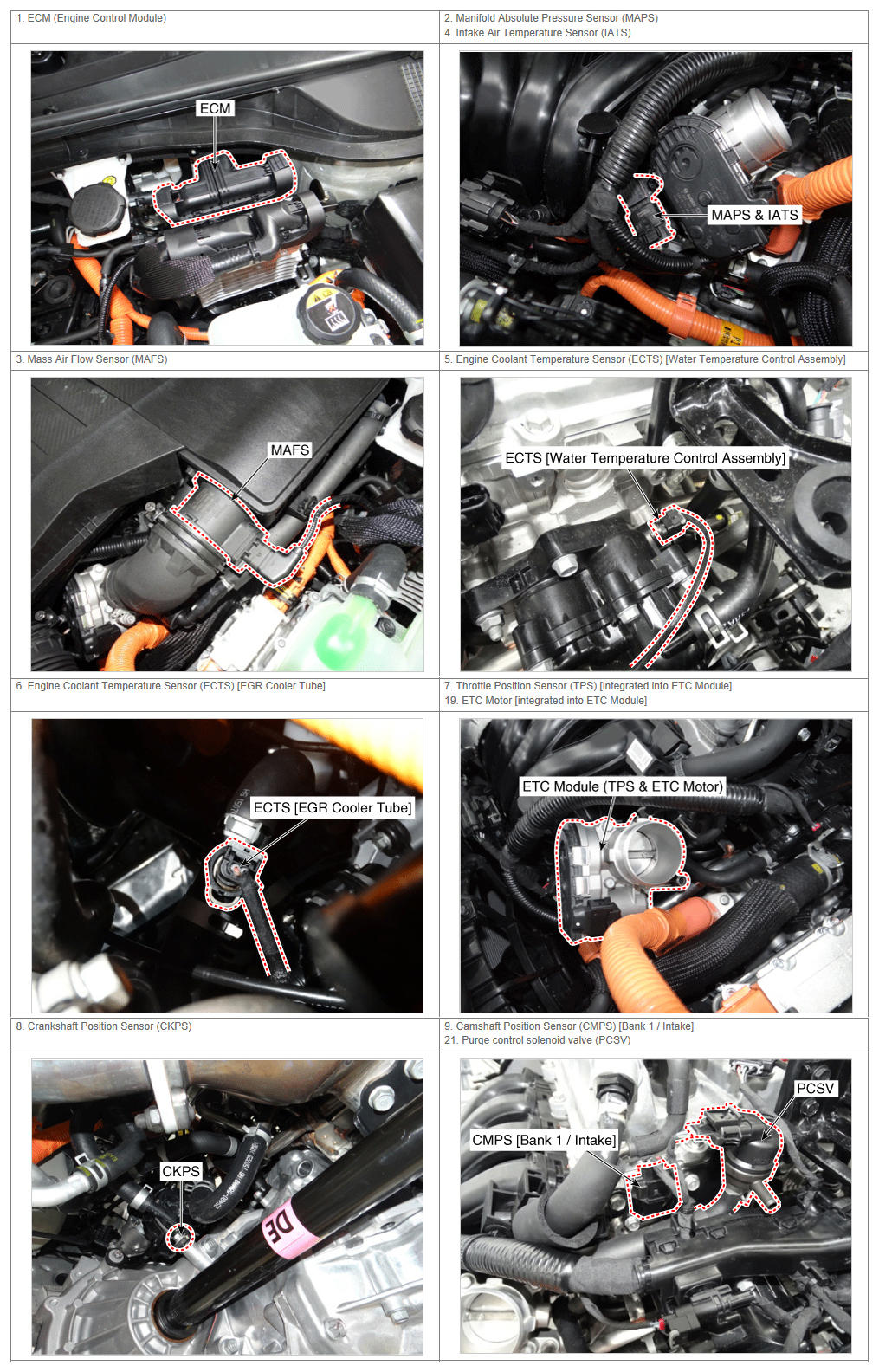

Fig 2: Locating Engine Control System Components (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

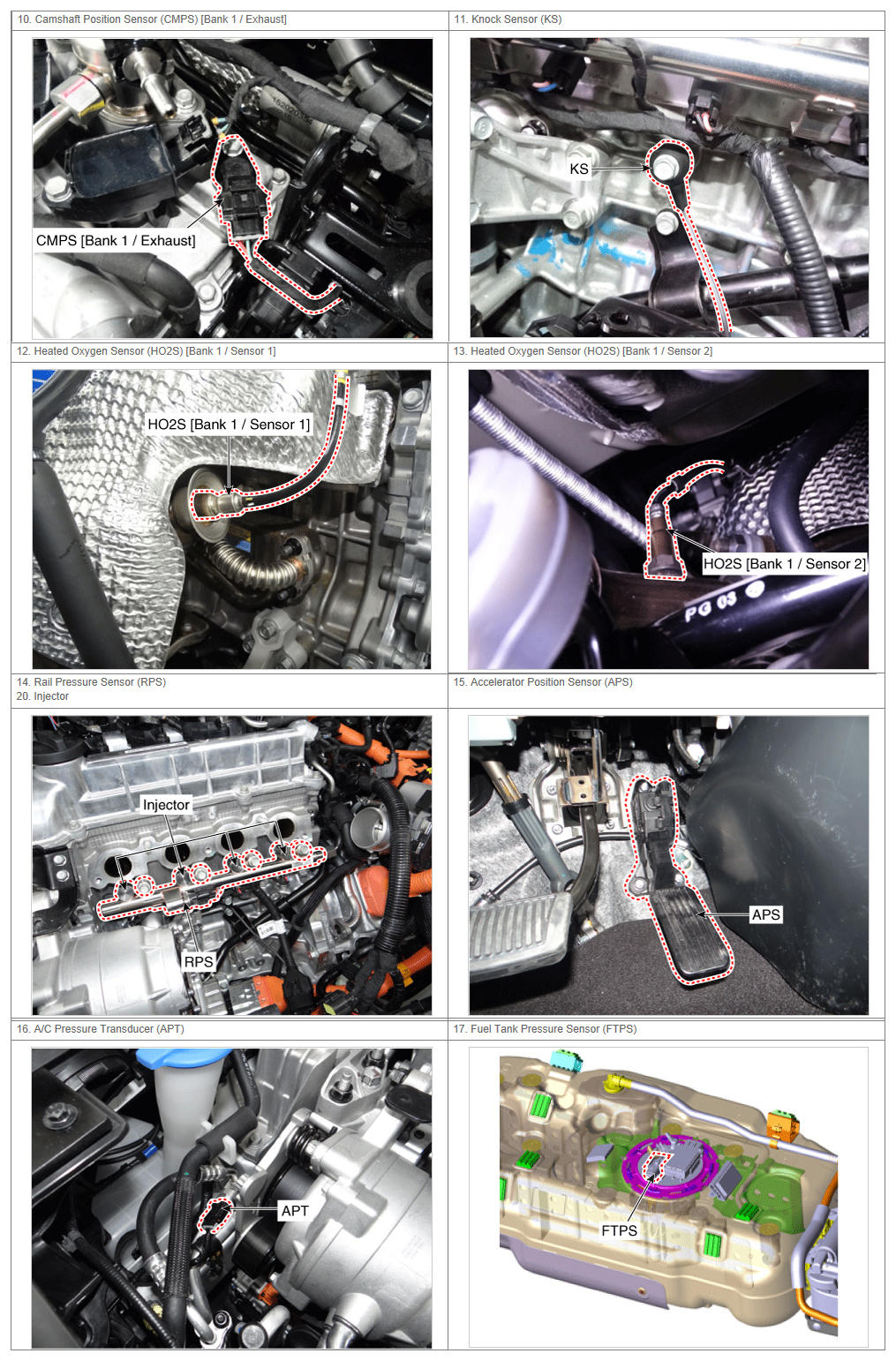

Fig 3: Locating Engine Control System Components (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

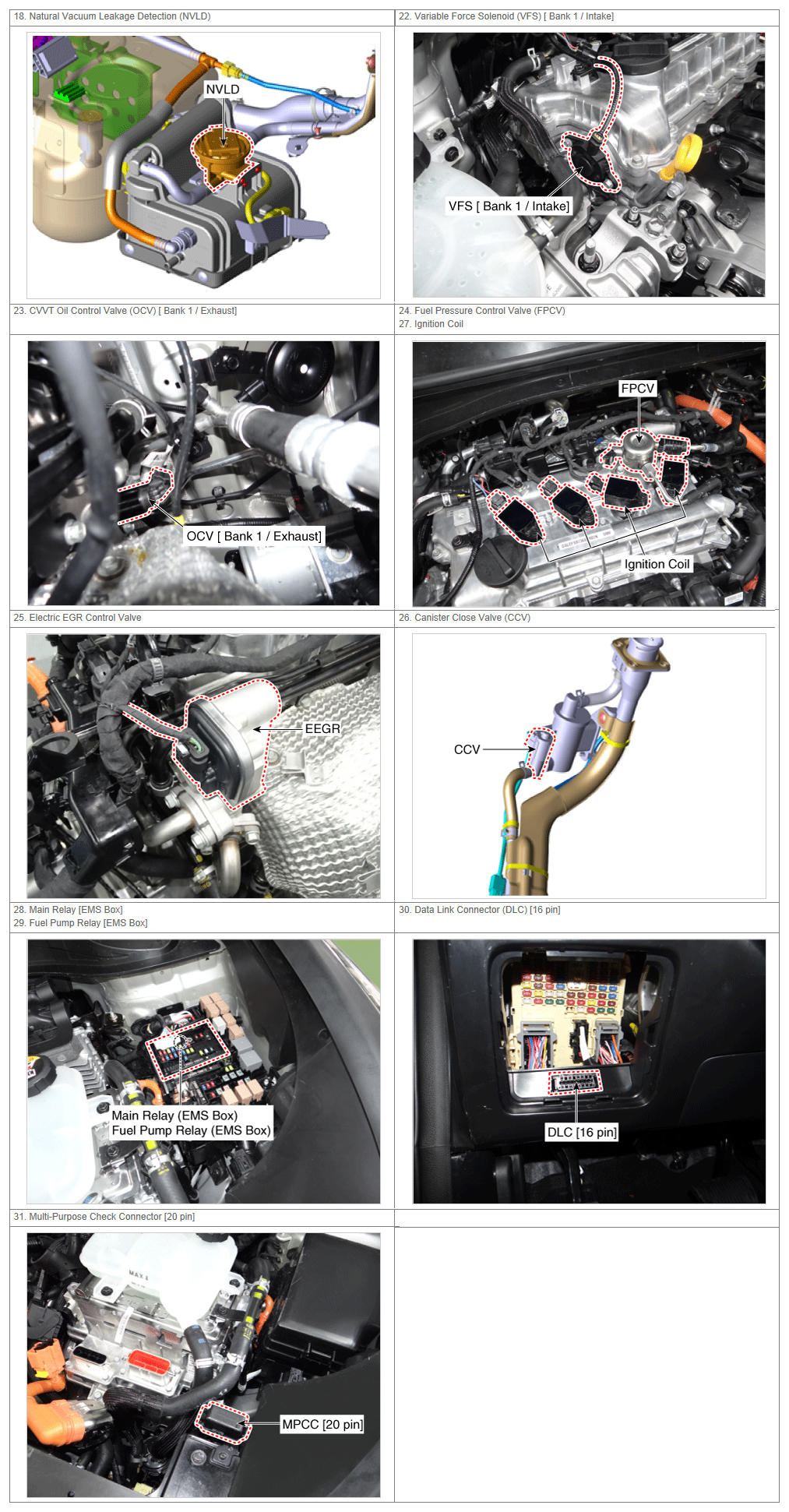

Fig 4: Locating Engine Control System Components (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
