Cruise Control System
>>
Cruise Control Switch
>>
Components And Components Location
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

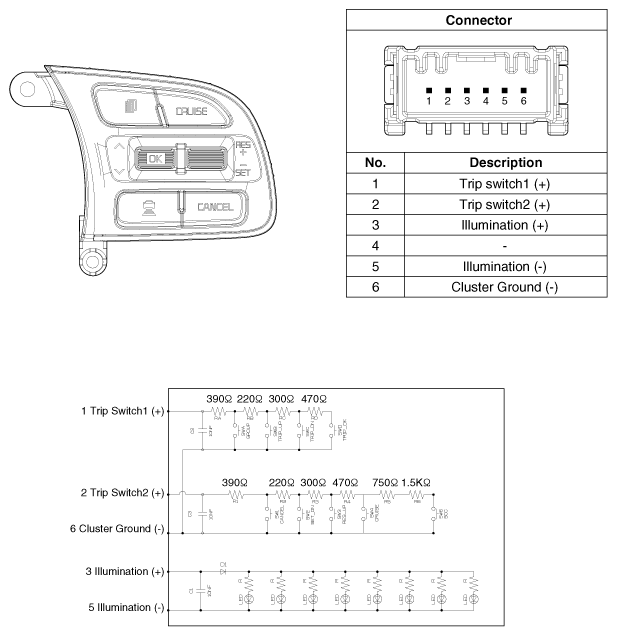

Fig 1: Cruise Control Switch System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
[Trip + Cruise]

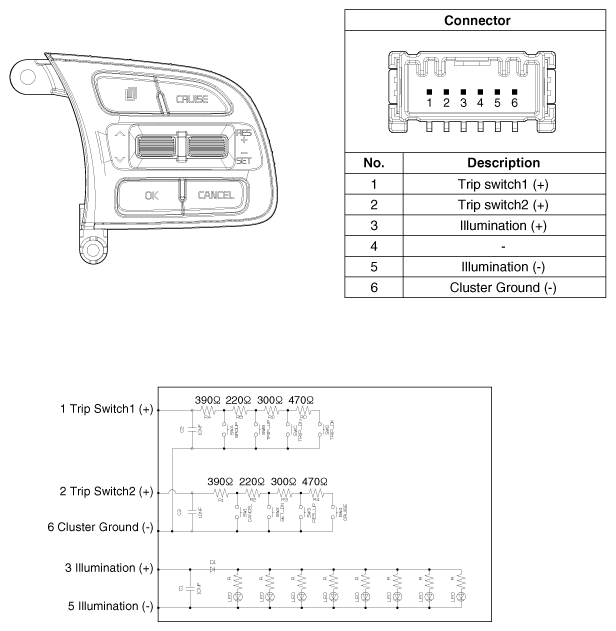

Fig 2: Cruise Control Switch System Circuit (Trip + Cruise)
Courtesy of KIA MOTORS AMERICA, INC.
[Trip + Cruise + SCC]
Fig 3: Cruise Control Switch System Circuit (Trip + Cruise + SCC)
Courtesy of KIA MOTORS AMERICA, INC.
