Connecting Rod

Using a feeler gauge, measure the end play while moving the connecting rod back and forth.

• If out-of-tolerance, install a new connecting rod.
• If still out-of-tolerance, replace the crankshaft.

  Side Clearance  :

  Standard: 0.10 - 0.25 mm (0.0039 - 0.0098 in.)

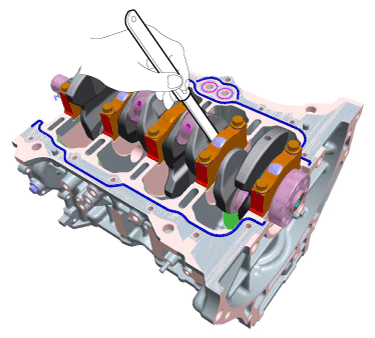

Fig 1: Installing Connecting Rod

Courtesy of KIA MOTORS AMERICA, INC.

1. Check that the match marks on the connecting rod and cap are aligned to ensure correct reassembly.
2. Remove 2 connecting rod cap bolts.
3. Remove the connecting rod cap and lower bearing.
4. Clean the crank pin and bearing.
5. Place a plastigage across the crankshaft pin journal.
6. Reinstall the lower bearing and cap, and torque the bolts.

   Tightening Torque  :

   [10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.9 lb.ft)] + [88 - 92°]

   NOTE:

   • Always use new connecting rod cap bolts. Connecting rod cap bolts are torque-to-yield bolts designed to be permanently elongated beyond the state of elasticity when torqued. Reusing the removing bolts can cause the bolts to break or fail to maintain clamping force.
   • Do not turn the crankshaft.
7. Remove the connecting rod cap and lower bearing.
8. Measure the width of the plastigage at its widest point.

   Oil Clearance

   Standard;

   0.018 - 0.036 mm (0.0007 - 0.0014 in.)

   Limit:

   0.030 - 0.056 mm (0.0012 - 0.0022 in.)

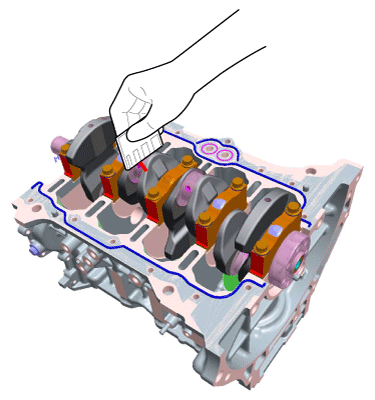

   Fig 2: Measuring Width Of Plastigage At Widest Point

   Courtesy of KIA MOTORS AMERICA, INC.
9. If the measurement from the plastigage is too wide or too narrow, remove the upper and lower bearing and then install new bearings with the same color mark. Recheck the oil clearance.
   NOTE: Do not file, shim, or scrape the bearings or the caps to adjust clearance.
10. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing. Recheck the oil clearance.
    NOTE:

    • If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and repeat the check procedure.
    • If the marks are indecipherable due to an accumulation of dirt and dust, clean with solvent or detergent instead of scrubbing them with a wire brush or scraper.

    Connecting Rod Identification Mark

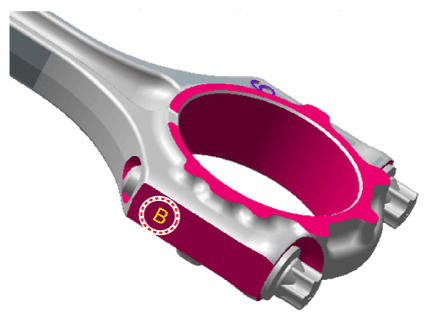

    Fig 3: Connecting Rod Identification Mark

    Courtesy of KIA MOTORS AMERICA, INC.

    Connecting Rod Specifications

    Class	Mark	Inside Diameter
    0	A	42.000 - 42.006 mm (1.65354 - 1.65378 in.)
    1	B	42.006 - 42.012 mm (1.65378 - 1.65402 in.)
    2	C	42.012 - 42.018 mm (1.65402 - 1.65425 in.)

    Crankshaft Pin Identification Mark

    Fig 4: Crankshaft Pin Identification Mark

    Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Conform to the stamping order in the direction of the arrow from #1.

    Crankshaft Specifications

    Class	Mark	Outside Diameter Of Pin
    I	1	38.966 - 38.972 mm (1.53409 - 1.53433 in.)
    II	2	38.960 - 38.966 mm (1.53386 - 1.53409 in.)
    III	3	38.954 - 38.960 mm (1.53362 - 1.53386 in.)

    Connecting Rod Bearing Identification Mark

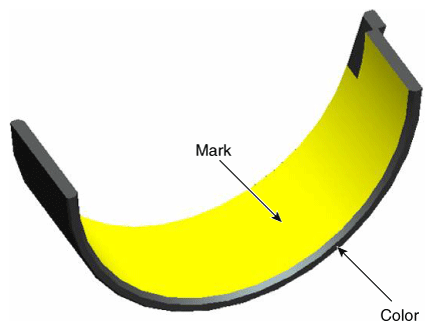

    Fig 5: Connecting Rod Bearing Identification Mark

    Courtesy of KIA MOTORS AMERICA, INC.

    Connecting Rod Bearing Specifications

    Class	Mark	Connecting Rod Bearing Thickness
    A	Blue	1.514 - 1.517 mm (0.0596 - 0.0597 in)
    B	Black	1.511 - 1.514 mm (0.0595 - 0.0596 in)
    C	None	1.508 - 1.511 mm (0.0594 - 0.0595 in)
    D	Green	1.505 - 1.508 mm (0.0593 - 0.0594 in)
    E	Yellow	1.502 - 1.505 mm (0.0591 - 0.0593 in)

11. Select a connecting rod bearing using selection chart.

Selection Chart For Connecting Rod Bearings

1. When reinstalling, make sure that cylinder numbers marked on the connecting rod and cap match during disassembly. When a new connecting rod is installed, make sure that the notches for holding the bearing in place are on the same side.
2. Replace the connecting rod if it is damaged on the thrust faces at either end. Also if step wear or a severely rough surface of the inside diameter of the small end is apparent, the rod must be replaced as well.
3. Using a connecting rod aligning tool, check the rod for bend and twist. If the measured value is close to the remedy limit, correct the rod by a press. Any connecting rod that has been severely bent or distorted should be replaced.

   Allowable Bend Of Connecting Rod  :

   0.05 mm (0.0020 in.) or less for 100 mm (3.94 in.)

   Allowable Twist Of Connecting Rod  : 0.10 mm (0.0039 in.) or less for 100 mm (3.94 in.)

   NOTE: When the connecting rods are installed without bearings, there should be no difference on side surface.
