Removal And Installation
NOTE:
Do not disassemble the oil pump (A) from timing chain cover because it is supplied as timing chain cover & oil pump assembly.

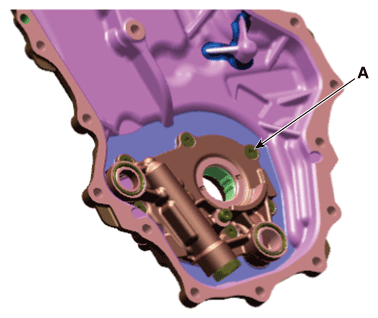

Fig 1: Locating Oil Pump From Timing Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.
