Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

  3. Disconnect the VESS unit connector (A).

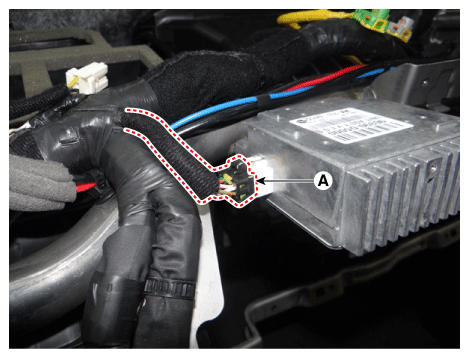

    Fig 1: Locating VESS Unit Connector
    G12335185Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the VESS unit (A) after loosening the mounting nuts.

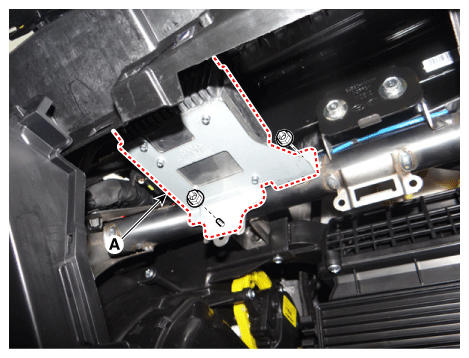

Fig 2: Removing VESS Unit Mounting Nuts
G12335186Courtesy of KIA MOTORS AMERICA, INC.
