Repair Procedures: Replacement

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the drain plug (A), allow the oil to drain out and then reinstall the drain plug.
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

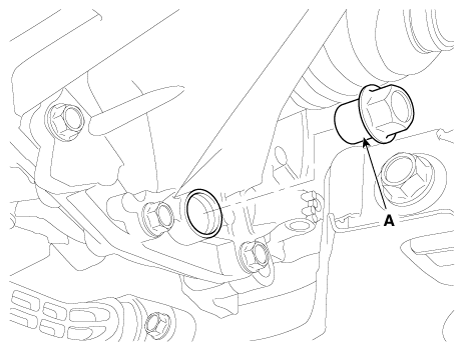

Fig 1: Locating Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil drain plug gasket must be replaced with a new one. (Do not reuse it.)
Remove the oil filler plug (A).

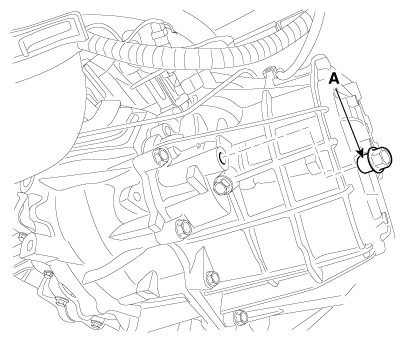

Fig 2: Locating Oil Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.
Fill the manual transaxle with manual transaxle oil through the filler hole.
Recommended:
- SAE 70W, API GL-4
- Recommended transaxle oil: SK HK MTF 70W, SHELL SPIRAX S6 GHME 70W, GS CALTEX GS MTF HD 70W
Capacity:

1.9 - 2.0 L (0.50 - 0.53 U.S.gal., 2.01 - 2.11 U.S. qt., 1.67 - 1.76 lmp qt.)

NOTE: Make sure that oil level is at the proper level (A).

Fig 3: Checking Oil Level
Courtesy of KIA MOTORS AMERICA, INC.
Install the oil filler plug (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

Fig 4: Locating Oil Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one. (Do not reuse it.)
Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
