Repair Procedures: Inspection

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Disconnect the back up lamp switch connector (A).

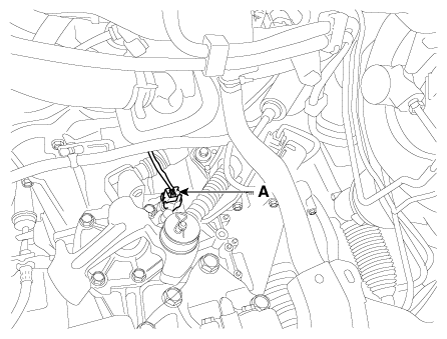

    Fig 1: Locating Back Up Lamp Switch Connector
    G12162317Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between power terminal and signal terminal.

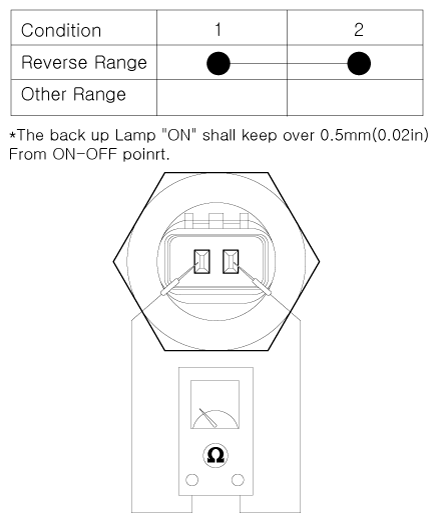

    Fig 2: Checking Continuity Between Power Terminal And Signal Terminal
    G12162318Courtesy of KIA MOTORS AMERICA, INC.
