Inhibitor Switch: Troubleshooting

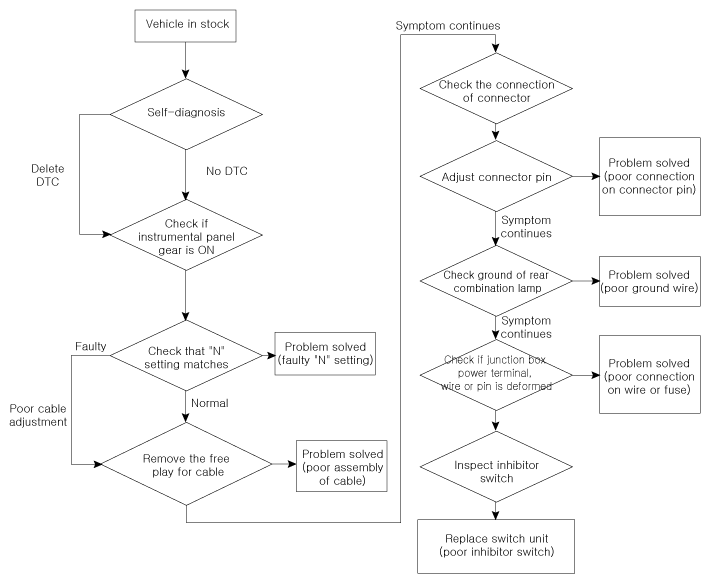

Fig 1: Inhibitor Switch Troubleshooting Flow Chart
G12163556Courtesy of KIA MOTORS AMERICA, INC.
