Smart Key Unit Diagnosis
>>
DTC B1602-00: CAN Error
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

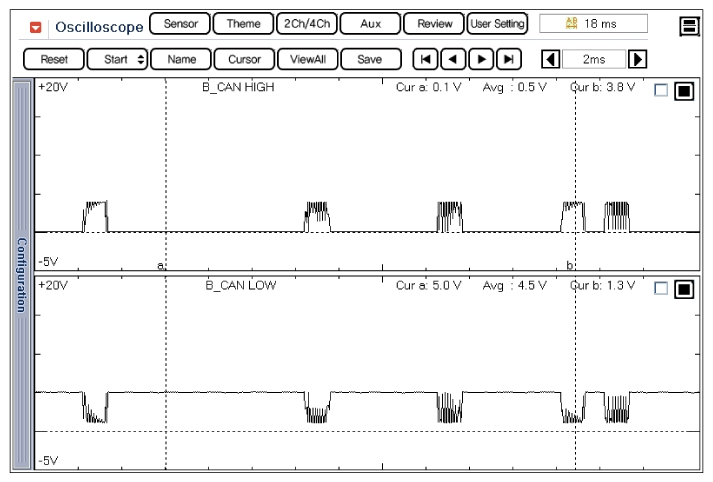

Fig 1: Scantool Display - Signal Waveform & Data
Courtesy of KIA MOTORS AMERICA, INC.
