ICM (Integrated Circuit Module) Relay Box
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

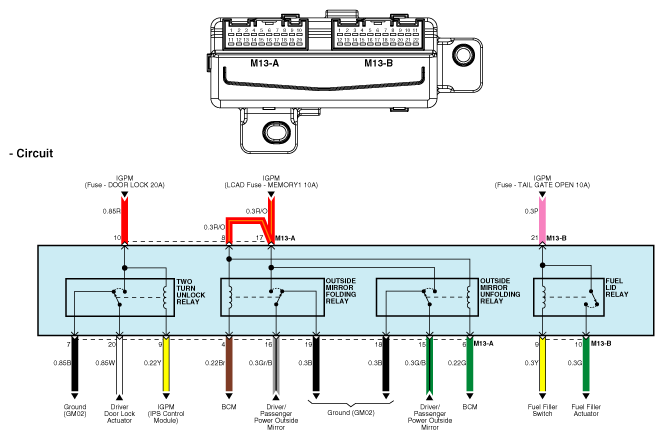

Courtesy of KIA MOTORS AMERICA, INC. RELAY BOX (PASSENGER COMPARTMENT) - ICM (INTEGRATED CIRCUIT MODULE) RELAY IDENTIFICATION
| Relay Description |
| Two Turn Unlock Relay |
| Outside Mirror Folding Relay |
| Outside Mirror Unfolding Relay |
| Fuel Lid Relay |
