Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If replacement of the bracket or extension wire of BSD unit is required, it is recommended to surely replace the defective part only with a new one, not the whole BSD unit.

Disconnect the negative (-) battery terminal.
Remove the rear bumper cover.
(Refer to Body - "REAR BUMPER COVER ")

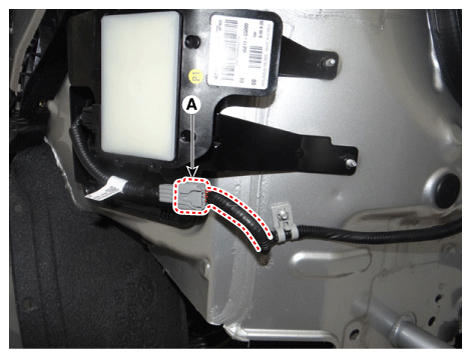

Disconnect the BSD connector (A).

Fig 1: Locating BSD Connector
Courtesy of KIA MOTORS AMERICA, INC.

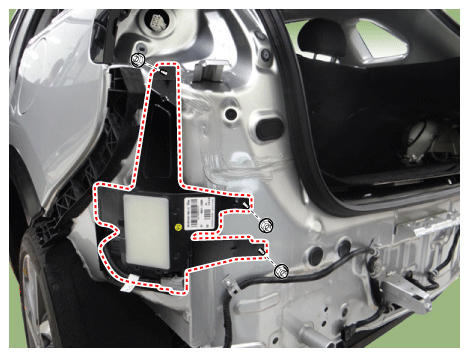

Remove the BSD unit (A) after loosening the mounting nuts.
Tightening torque: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

NOTE: Be careful not to damage the bracket when removing the BSD unit.

Fig 2: Removing BSD Unit Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

Information

In the following cases, replace the extension wire or bracket.
1. If the bracket is physically deformed or damaged.
  Remove the bracket (A) from the BSD unit by loosening the screws.

  Fig 3: Locating Bracket
  Courtesy of KIA MOTORS AMERICA, INC.
2. If the connector or wire is damaged.
Remove the extension wire (A) after separating the mounting clip.

Fig 4: Locating Extension Wire
Courtesy of KIA MOTORS AMERICA, INC.
