Automatic Transaxle Control System - 2.0L GDI
>>
Inhibitor Switch
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

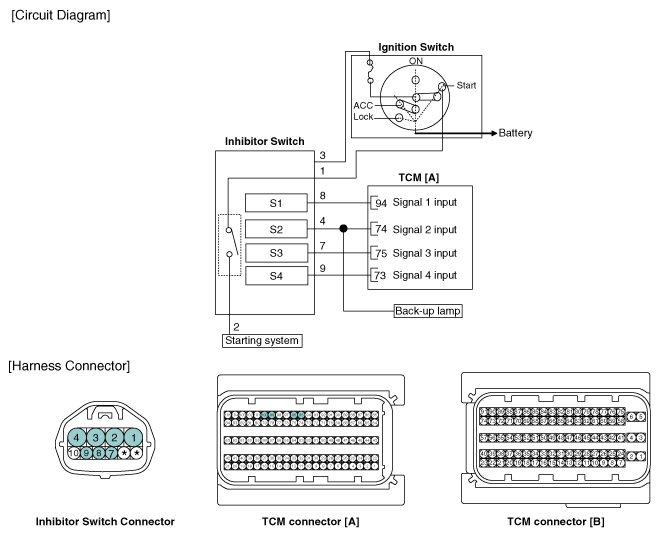

Fig 1: Inhibitor Switch Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
