Monitor GDS Data

■ EPS Type recognition

1. Connect GDS to Data Link Connector (DLC)
2. Ignition "OFF" and then Ignition "ON".
3. Choose the area type (figure below).
4. Ignition "OFF" & Waiting 20sec.
5. Ignition "ON".
6. Select "Diagnostic Trouble Codes (DTC)"  mode again.
7. Are any DTCs present?

   YES

   • Substitute with a known-good steering column & EPS unit assembly check for proper operation.

     If problem is corrected, replace steering column & EPS unit assembly and then go to "Verification of Vehicle Repair " procedure.

   NO

   • Fault is intermittent caused by faulty EPS CM or was repaired and EPS CM memory was not cleared.

     Go to "Verification of Vehicle Repair " procedure.

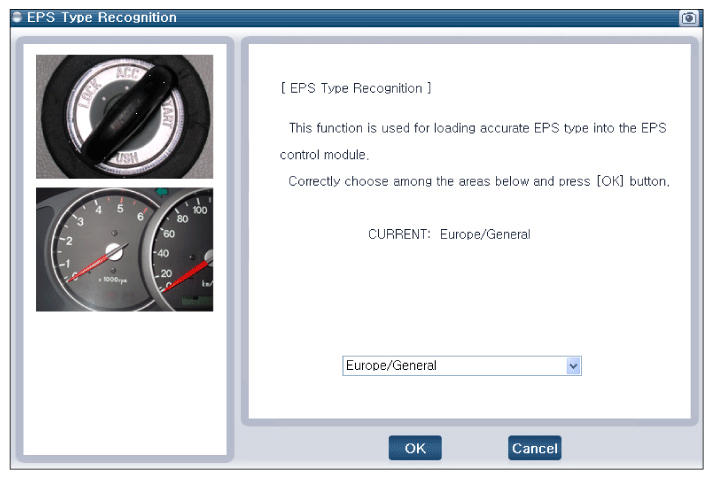

     Fig 1: Screen Display - EPS Type Recognition

     Courtesy of KIA MOTORS AMERICA, INC.
