Repair Procedures: Inspection

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the mirror operates properly as shown in the below illustrations.

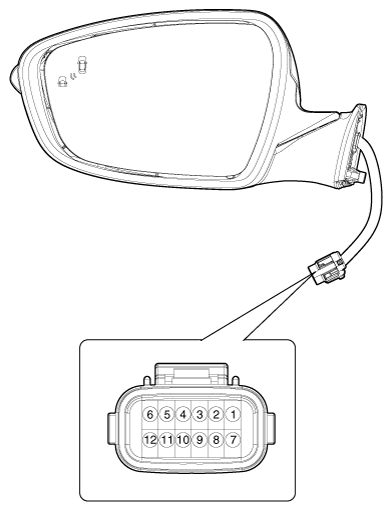

Fig 1: Mirror Connector Terminals
G12166641Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: BSD Warning Lamp Connector Terminals Continuity Chart
G12166642Courtesy of KIA MOTORS AMERICA, INC.
