Monitor DTC Status
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS/GDS to Data Link Connector (DLC).
- Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.
|

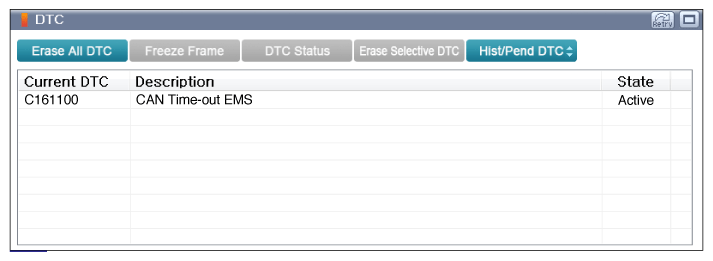

Fig 1 |
Courtesy of KIA MOTORS AMERICA, INC.
| Active Fault |
|
| History/Pending Fault |
|
