[Driver Side]

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ".)

  3. Remove the driver side shower duct (A) after loosening the screw.

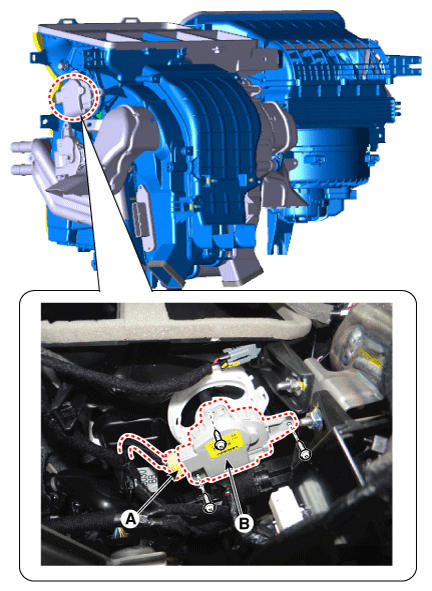

    Fig 1: Removing Driver Side Shower Duct Screw
    G12336158Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
