Service Point Target Auto Calibration (SPTAC): Notes

This procedure provides a way to calibrate the camera by having the service technician align the car to a well lit simulated straight road target; preferably wall mounted.

The LKAS camera will have a "System Out of Calibration" DTC set if not operating within specified tolerances.

The LKAS will be supplied for field service replacement with the "System Calibration Required/Variant Coding Error" DTC set if it is a replacement part delivered directly from supplier manufacturing.

1. Guidelines for Selecting a Suitable Target

   In order for LKAS Service Calibration-Static routine to complete successfully, the following conditions are required:

   • Target (SST: 09890-3V100) surface is perpendicular to the camera in both horizontal and vertical orientations to maintain maximum of 1° roll.
   • Target is mounted to rigid backer material to maintain flatness requirements.
   • Target has reflective (not faded or poorly painted) markings that are unlike from lane features.
   • Target is 30 cm wide and 100 cm tall.
   • Mounting area must NOT have cross hatch patterns or textual markings near the target.
   • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.

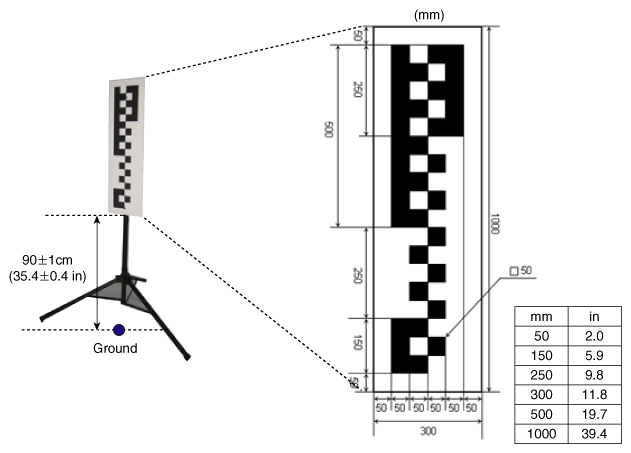

   Fig 1: Service Point Target Auto Calibration Dimensions

   Courtesy of KIA MOTORS AMERICA, INC.
2. Service Point Target Auto Calibration Procedure
   1. It is recommended to check vehicle toe-in and tire pressure levels to ensure proper alignment of the camera to the "world" before proceeding with calibration. The vehicle to run the calibration routine is to be at nominal production loading capacity.
   2. Windshield must be clean and silk-screen checked so that there is no blockage of the camera.
   3. Service technician connects the diagnostic connector and starts the vehicle. The camera module should not be activated by pressing the switch.
   4. The service calibration routine may not run correctly if any system level fault is active.

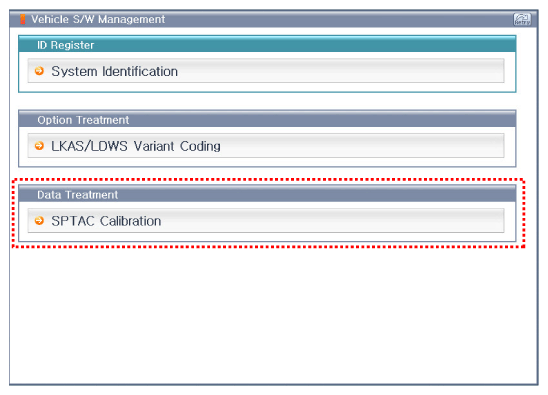

   5. If working with a replacement ECU: the service technician initiates the SPTAC Reset configuration.
   6. Service technician either aligns the vehicle to the target or the target to the vehicle.
      1. Bottom of the target is 90 ± 1 cm (35.4 ± 0.4 in.) from the ground and aligned with the camera lens horizontal axis.

         Information

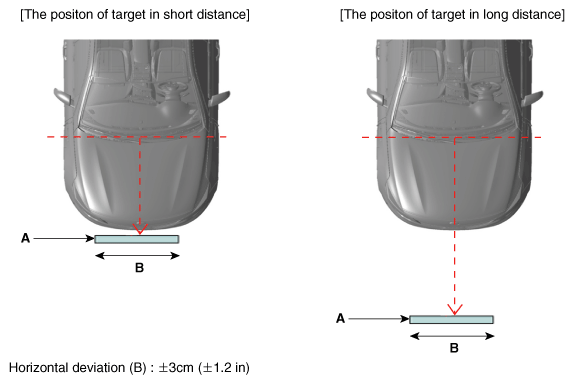

         The target (A) is placed along the vehicle's longitudinal axis (centerline) within ±3 cm (±1.2 in.) of target center. (Horizontal deviation (B): ±3 cm (±1.2 in.)))

         Fig 2: Placing Target Along Vehicle Longitudinal Axis (Centerline) Of Target Center

         Courtesy of KIA MOTORS AMERICA, INC.

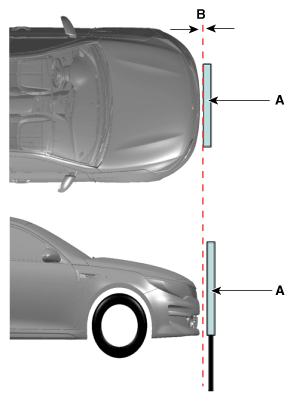

      2. The position of target (A) in short distance is 0 ± 5 cm (0 ± 2 in.) (B) in front of front bumper.
         Fig 3: Checking Front Bumper Short Distance

         Courtesy of KIA MOTORS AMERICA, INC.

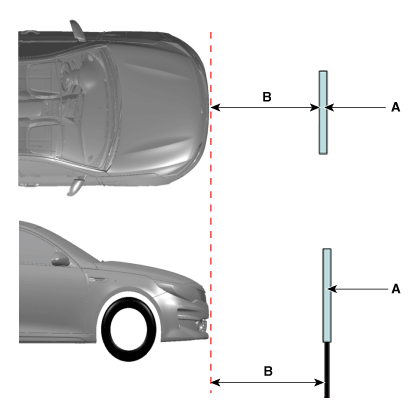

      3. The position of target (A) in long distance is 100 ± 5 cm (39.4 ± 2 in.) (B) in front of front bumper.
      Fig 4: Checking Front Bumper Long Distance

      Courtesy of KIA MOTORS AMERICA, INC.

      Information

      • The tolerance angle of target in horizontal direction is ± 10°.
      • The tolerance angle of target in vertical direction is ± 5°.
      Fig 5: Checking Target Tolerance Angle

      Courtesy of KIA MOTORS AMERICA, INC.
   7. After confirming the calibration target location in close distance, click "OK" on diagnostic device.

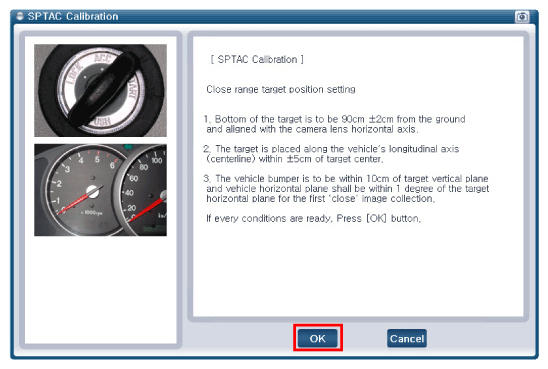

      Fig 6: Screen Display - SPTAC Calibration (1 Of 6)

      Courtesy of KIA MOTORS AMERICA, INC.
      Fig 7: Screen Display - SPTAC Calibration (2 Of 6)

      Courtesy of KIA MOTORS AMERICA, INC.
      Fig 8: Screen Display - SPTAC Calibration (3 Of 6)

      Courtesy of KIA MOTORS AMERICA, INC.
   8. Technician ensures target placement location and checks the "OK" message on the diagnostic tool (KDS/GDS).
      Fig 9: Screen Display - SPTAC Calibration (4 Of 6)

      Courtesy of KIA MOTORS AMERICA, INC.

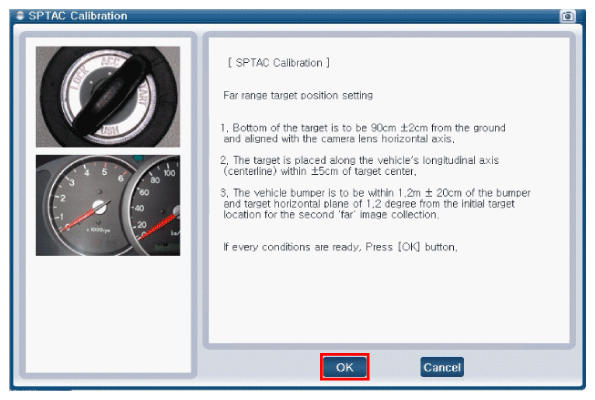

   9. After confirming the calibration target location in remote distance, click "OK" on diagnostic device.

      (Perform location calibration 2 times.)

      Fig 10: Screen Display - SPTAC Calibration (5 Of 6)

      Courtesy of KIA MOTORS AMERICA, INC.
   10. Technician ensures target placement location and checks the "OK" message on the diagnostic tool (KDS/GDS).

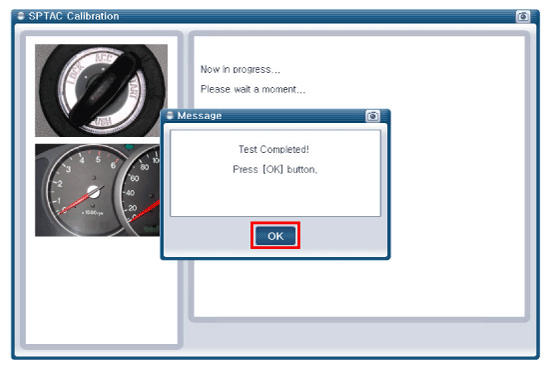

       Fig 11: Screen Display - SPTAC Calibration (6 Of 6)

       Courtesy of KIA MOTORS AMERICA, INC.
   11. Clear all of DTCs.
   12. Turn off IGN and then on.
