Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Parking Assist System
>>
Description And Operation
>>
System Overview
>>
System Block Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

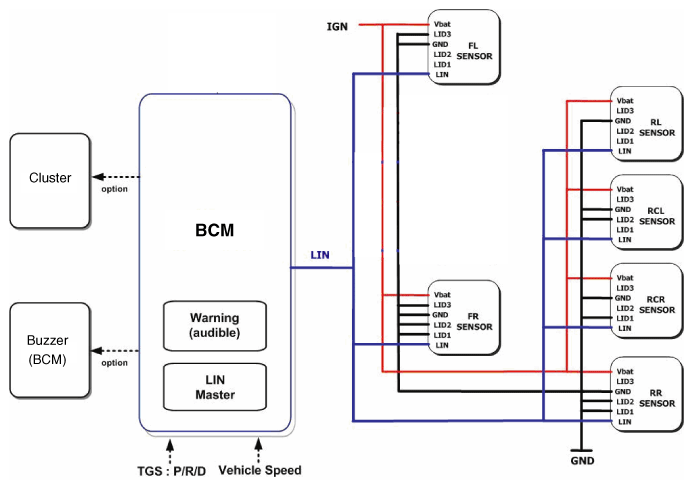

System Block Diagram
Fig 1: Parking Assist System Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
