Terminal And Connector Inspection

  1. Many malfunctions in the electrical system are caused by poor harness and terminals.

    Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

  2. Thoroughly check connectors for backed out terminal, improper mating, broken locks, looseness, poor connection, bending, corrosion, contamination, deterioration, damage or poor terminal to wire connection.
  3. Has a problem been found?

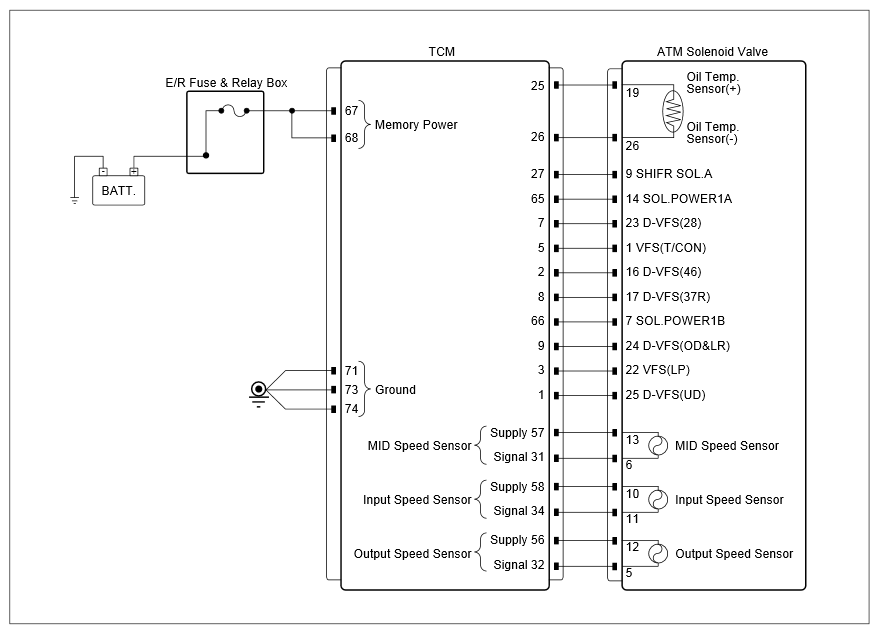

    Fig 1: TCM & ATM Solenoid Valve Circuit Diagram
    G12286977Courtesy of KIA MOTORS AMERICA, INC.

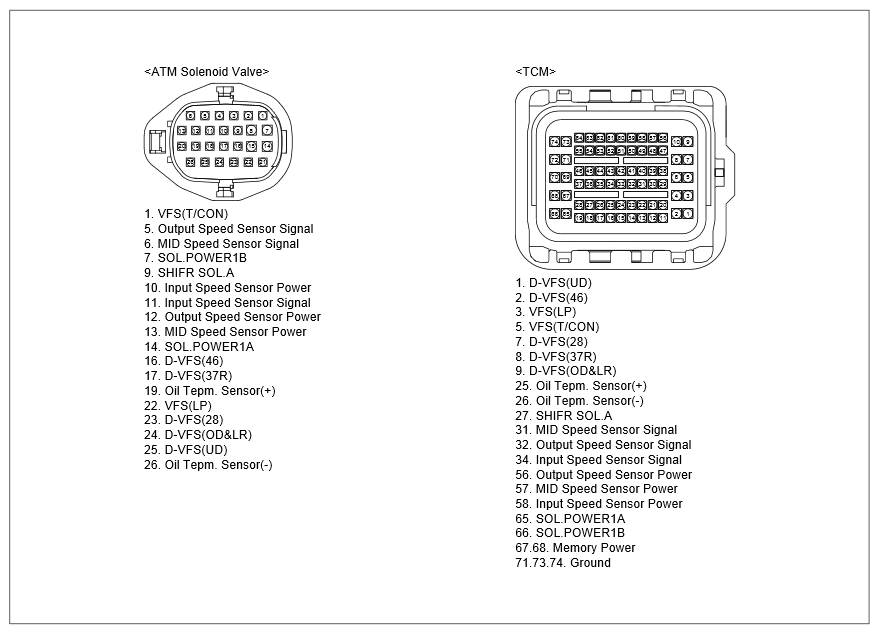

    Fig 2: TCM & ATM Solenoid Valve Connector End View
    G12286978Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
