Inspection after installing TPMS sensor

Seal washer must be compressed on the outer surface of rim hole.
The lower part of the valve must be locate in the set position (within metal bracket) of the housing.
One or more points of the housing must be contacting the surface of the rim.
The mounting height of the housing must not exceed the sill of the rim.

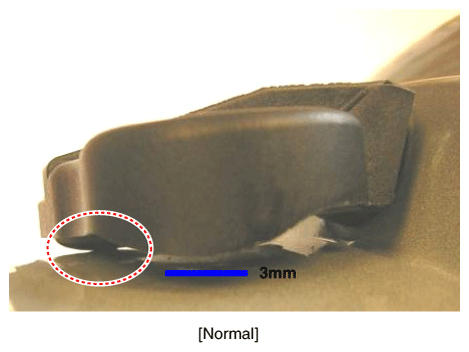

Fig 1: Inspecting TPMS Sensor Mounting Height (Normal)
Courtesy of KIA MOTORS AMERICA, INC.

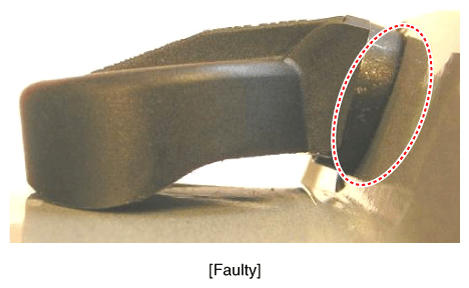

Fig 2: Inspecting TPMS Sensor Mounting Height (Faulty)
Courtesy of KIA MOTORS AMERICA, INC.
