Diagnosis by using diagnostic device

The main contents of diagnostic method using diagnostic device are as follows:

1. Connect self-diagnosis connector (16 pins) located in the lower driver side crash pad to self-diagnostic device, and then turn on the self-diagnostic device after key is ON.
2. Select the "vehicle model" and "TPMS" on KDS/GDS vehicle selection screen, then select OK.

   [Sensor registration method 1]

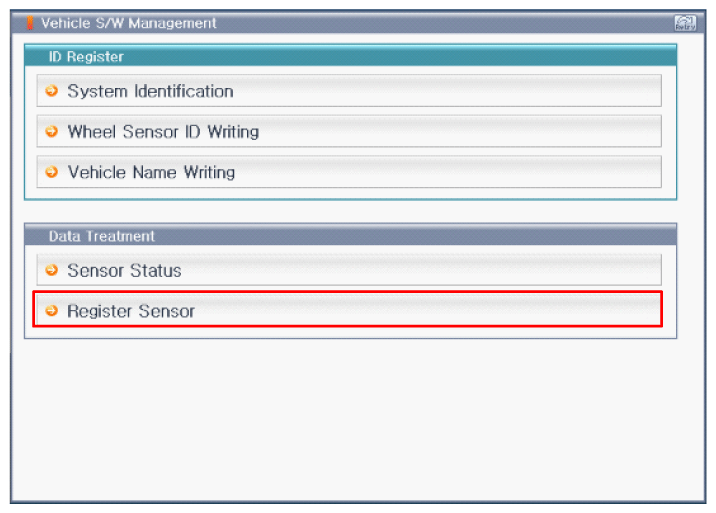

   Fig 1: Screen Display - Sensor Registration Method 1

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor registration method 2]

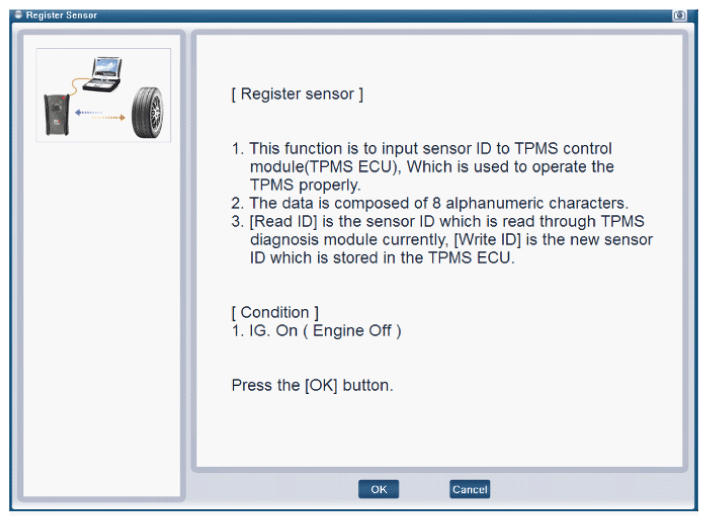

   Fig 2: Screen Display - Sensor Registration Method 2

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor registration method 3]

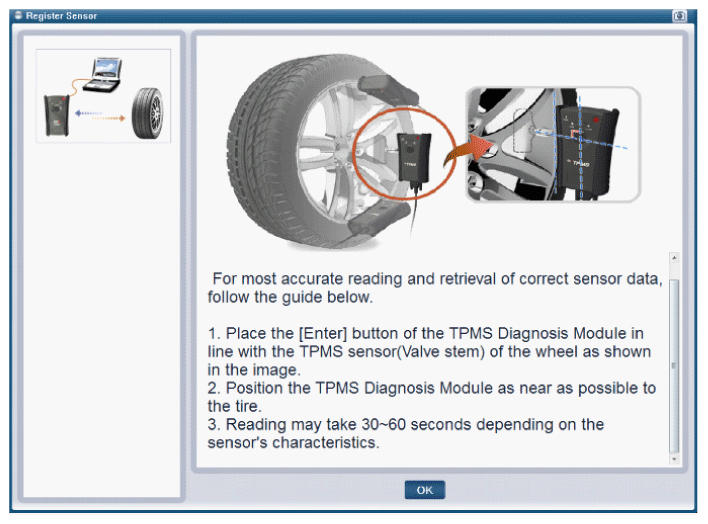

   Fig 3: Screen Display - Sensor Registration Method 3

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor registration method 4]

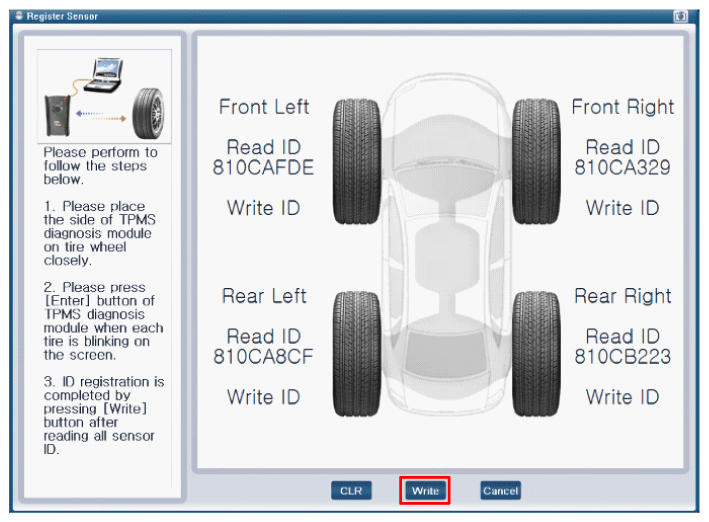

   Fig 4: Screen Display - Sensor Registration Method 4

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor registration method 4]

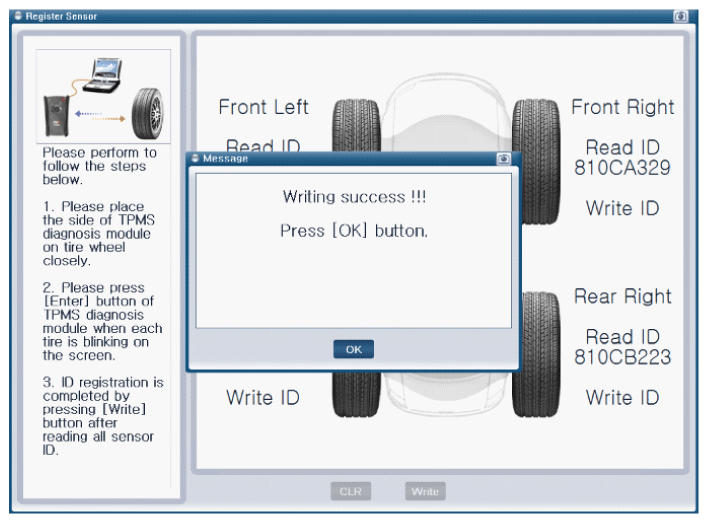

   Fig 5: Screen Display - Sensor Registration Method 5

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

   • Check that Write ID and Read ID are the same.
   • After successfully registering the sensor, perform "Sensor Wireless Information" to confirm that the sensor operates properly.

   [Sensor Status Method 1]

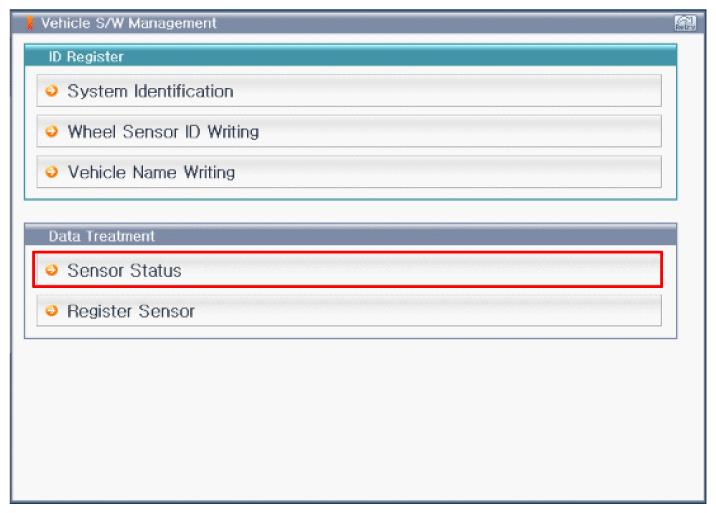

   Fig 6: Screen Display - Sensor Status Method 1

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor Status Method 2]

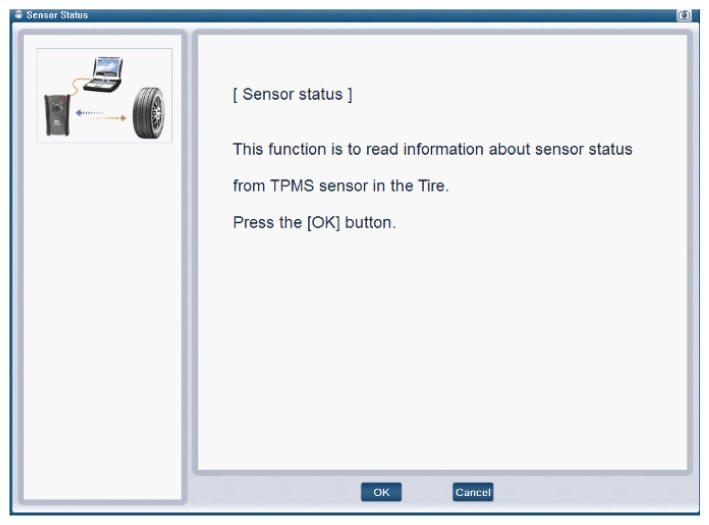

   Fig 7: Screen Display - Sensor Status Method 2

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor Status Method 3]

   Fig 8: Screen Display - Sensor Status Method 3

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor Status Method 4]

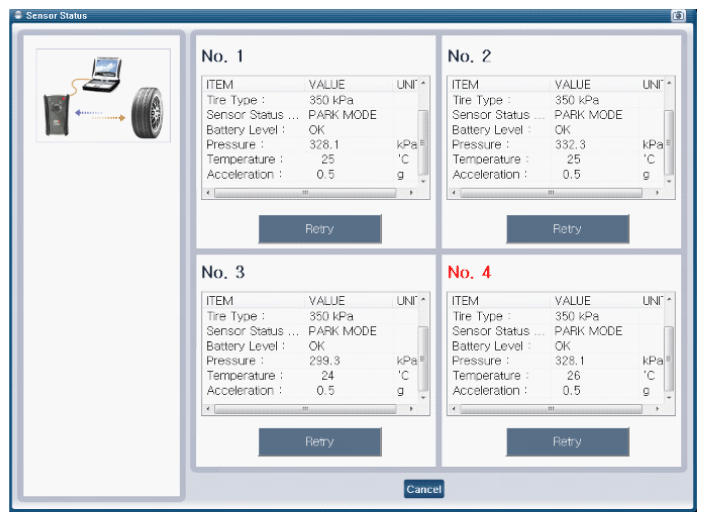

   Fig 9: Screen Display - Sensor Status Method 4

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

   • Each entry must be checked for normal operation of each sensor.
   • After replacing the tires or sensors, check for proper operation of sensor after sensor registration process.
