Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX UPPER COVER ASSEMBLY ")

  3. Remove the smart key unit.

    (Refer to Body Electrical System - "SMART KEY UNIT ")

  4. Disconnect the body control module connectors (A).

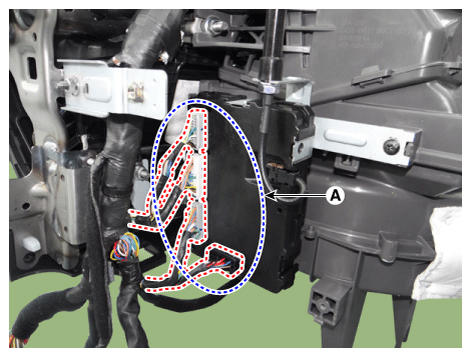

    Fig 1: Disconnecting Body Control Module Connectors
    G12294173Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the body control module (A) after loosening the mounting nut and screw.

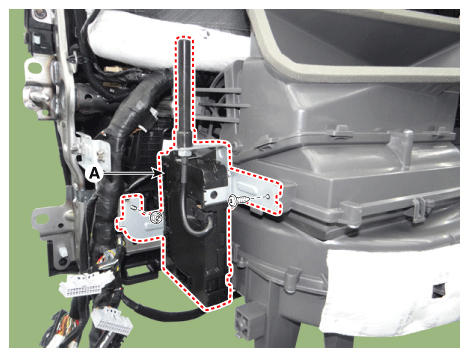

    Fig 2: Removing Body Control Module
    G12294174Courtesy of KIA MOTORS AMERICA, INC.
  6. After replacing the receiver, learn by using self-diagnostic device (KDS/GDS).
