Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat shield outer cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

  3. Remove the slide knob (A) and height knob (B).

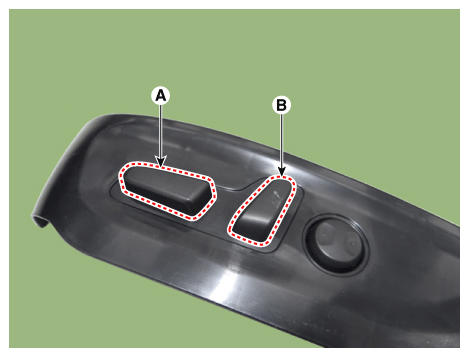

    Fig 1: Locating Slide Knob And Height Knob
    G12335055Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the power seat control switch (A) after loosening the screws.
Fig 2: Removing Power Seat Control Switch Screws
G12335056Courtesy of KIA MOTORS AMERICA, INC.
