Component Location

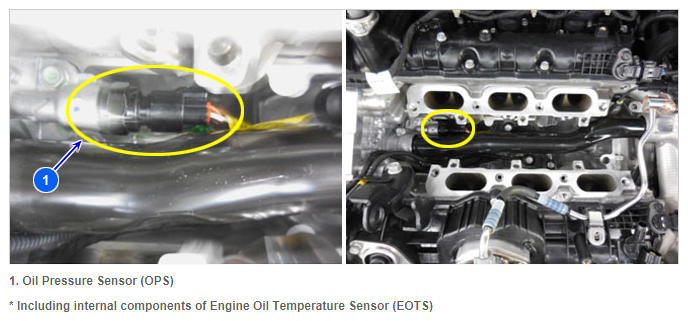

Fig 1: Locating Oil Pressure Sensor (OPS) & Engine Oil Temperature Sensor (EOTS)
G12285248Courtesy of KIA MOTORS AMERICA, INC.
