Fuel Delivery System
>>
Fuel Pressure Sensor (FPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

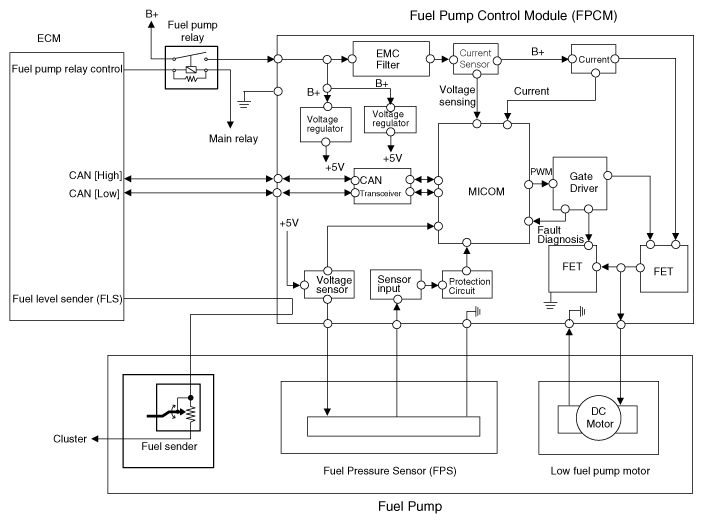

Fig 1: Fuel Pressure Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
