Signal Wavefrom & Data

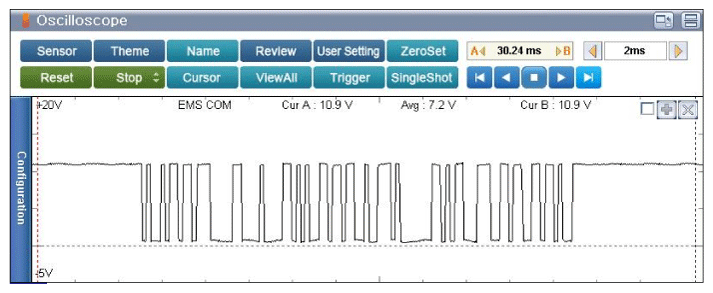

Fig 1: Screen Display - Communication Signal Waveform Between SMK Unit And ECM/PCM
G12280759Courtesy of KIA MOTORS AMERICA, INC.
