PCM (Power Train Control Module)

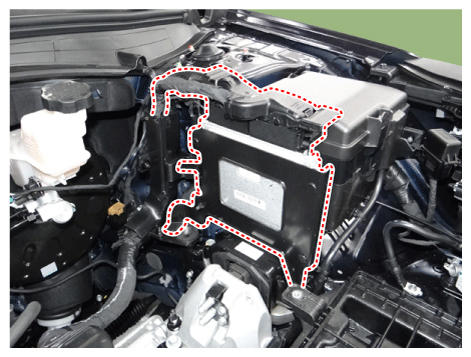

- The PCM (ECM) (A) checks on the ignition key using a special encryption algorithm, which is programmed into the transponder as well as the PCM (ECM) simultaneously. Only if the keys match, the engine can be started. The data of all transponders valid for the vehicle, are stored in the PCM (ECM).
ERN (Encrypted Random Number) value between EMS and encrypted SMARTRA unit is checked and the validity of coded key is decided by EMS.
