Monitor KDS/GDS Data

Shift lever position "P" & Ignition "ON".
Select "Actuation Test" mode.
Perform "Dedicated DRL Output" in the "Actuation Test" with KDS/GDS.

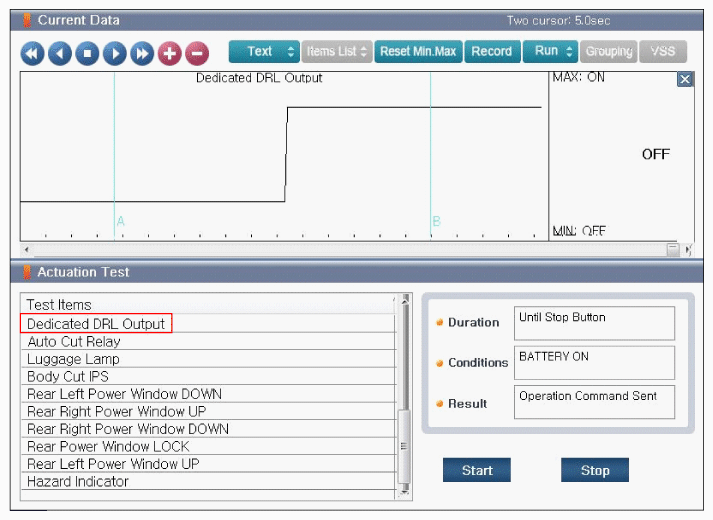

Fig 1: Scantool Display - Dedicated DRL Output Of Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.

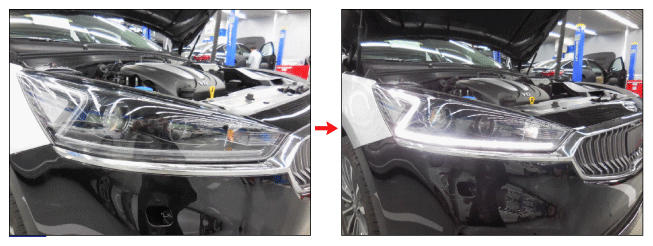

Fig 2: Scantool Display - DRL Lamp Operates On Performing Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
Is the Dedicated DRL Lamp operating properly?
YES
- Go to "Verification Of REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
